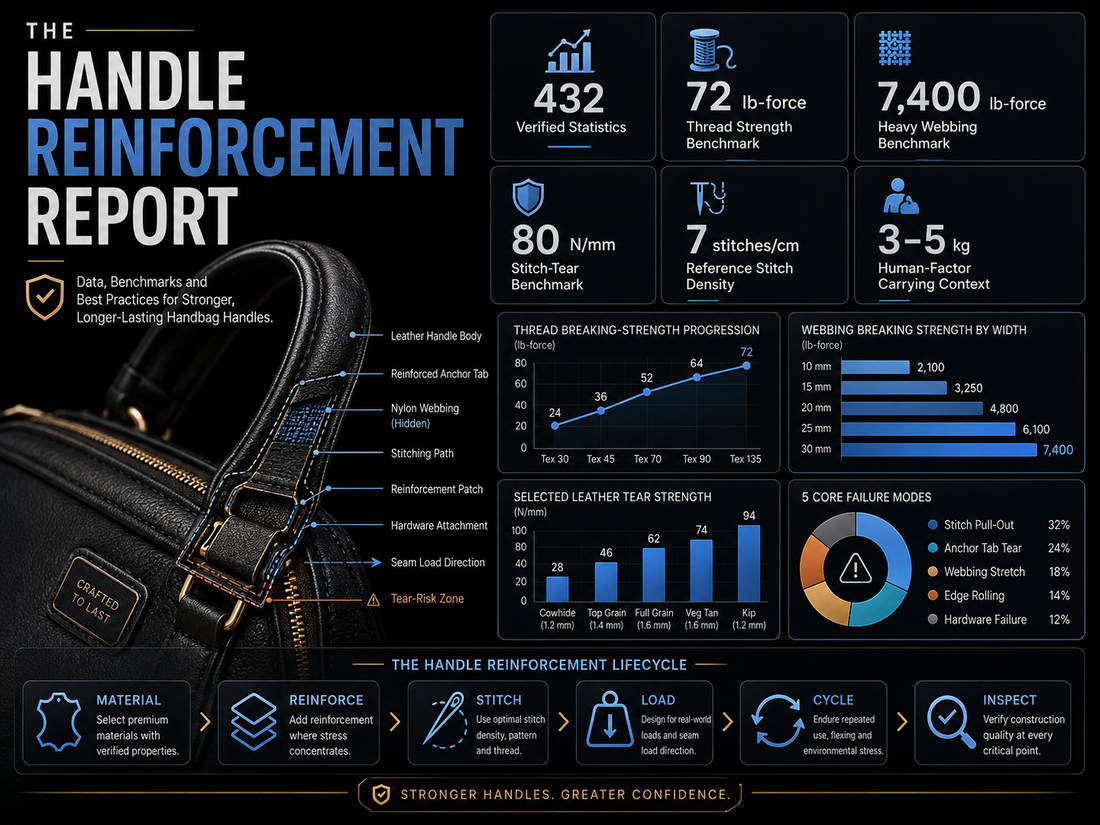

The Handle Reinforcement Report

A handbag handle appears simple to the wearer, yet it carries one of the most concentrated mechanical duties in the entire product. Every kilogram lifted by the hand has to travel through the handle body, the handle end, stitching or hardware, internal reinforcement, anchor tabs and finally the bag wall. A weakness at any of those transitions can cause stretching, seam opening, leather tearing or complete detachment even when the visible handle material looks substantial.

The dataset assembled for this report contains 432 organized statistical observations across 11 reinforcement categories. Sewing-thread specifications account for 146 observations, government thread-standard data for 72, needle compatibility for 64, thread strength for 36, thread elongation for 36, webbing reinforcement for 24, leather mechanics for 18, stitching-process controls for 16, test standards for 5, human-factor load context for 3, and regional or country market statistics for 12. The distribution makes one point clear: handle durability depends as much on the details of assembly as on the nominal strength of any single material.

Even the strongest raw materials can produce a weak finished handle when the load path is poorly designed. A webbing rated at several thousand pounds can terminate inside a small leather tab that begins to tear around the stitch line. A heavy thread can require a larger needle that removes more leather from the seam path. A thick backing patch can increase local stiffness so abruptly that bending and cracking migrate to its edge. Premium construction therefore depends on controlled load transfer: every component must carry its share of realistic, repeated service load without pushing excessive stress into the next component.

This report follows reinforcement from thread size and needle compatibility through seam geometry, webbing, leather tensile and tear behavior, hardware, repeated carrying, laboratory testing, production engineering and market context. The central benchmark is not maximum strength in isolation. It is whether the complete handle assembly retains geometry, attachment security and usable comfort after the loads, movements and handling cycles that define real ownership.

Executive Handle Reinforcement Benchmarks

The numbers defining load-bearing construction

The headline values show how wide the mechanical range can be before a finished handbag is even assembled. Government nylon-thread requirements represented in the dataset extend from minimum breaking strengths near 1.8 lb-force for finer constructions to 72 lb-force for the heaviest listed examples. Industrial thread families used in bags and leather goods span from comparatively fine Tex sizes to heavy options near 400 Tex and beyond.

Internal webbing operates on an even larger raw-strength scale. Selected nylon products in the dataset range from approximately 1,250 lb-force to 7,400 lb-force breaking strength, with nominal widths from 12.7 mm to 50.8 mm and thicknesses from about 1.07 mm to 1.86 mm. Those figures are intentionally much larger than ordinary handbag service loads, but that margin does not transfer automatically into the finished product.

Leather creates the critical interface between those strong reinforcing materials and the bag itself. Study-specific tensile values in the dataset extend from 4.82 MPa to approximately 20.1 MPa, while selected tear and stitch-tear benchmarks sit in the tens of newtons per millimetre.





Why Handle Reinforcement Requires a System-Based Benchmark

Strength depends on the entire load path

Handle failure is often described as a material problem, but in practice it is usually a connection problem. The load begins at the hand and moves into the handle span, through the attachment area and into the bag body. The center of a reinforced handle may be capable of carrying far more tension than the small zone where the strap ends.

Five failure modes dominate the system view: thread rupture, stitch pull-through, leather tearing, reinforcement slip and hardware distortion or pull-out. These modes are mechanically different. Thread rupture means the sewing medium has reached its capacity or has been weakened by abrasion. Stitch pull-through means the thread survives but cuts or tears through the substrate. Reinforcement slip indicates that a strong internal tape was not anchored effectively.

A system-based benchmark asks where force enters, where it changes direction and how much material is available to distribute it. Longer anchor tabs, wider backing zones, curved transitions and reinforcement that continues beyond the stitch line can reduce local stress without changing the raw strength of the thread or leather. Conversely, abrupt termination, short tabs and closely spaced holes can turn otherwise premium materials into a fragile assembly.



The Mechanical Architecture of a Reinforced Handle

How load travels through the bag

A typical reinforced handle is a layered structure. The outer leather supplies the visible finish and part of the tensile capacity. A filler or internal core controls shape. Nylon or polyester tape can carry a large share of the longitudinal tension. Edge folds and adhesives stabilize the section before stitching.

Three load types matter most. Tensile force acts along the length of the handle when the bag is lifted. Shear develops where stitched layers attempt to slide relative to one another. Peel and tear forces occur at edges, holes and seam terminations where the direction of load changes abruptly.

The reinforcement objective is to transfer force gradually across the assembly. A well-designed internal webbing strip does not simply sit inside the handle; it should terminate where the surrounding leather has enough area and structural support to accept the load. Backing patches should extend beyond the most concentrated stitch or hardware zone. Stitch lines should engage sufficient material without creating a perforated tear path.





Industrial Sewing Thread as the First Reinforcement Layer

Thread size establishes the seam's mechanical scale

The 146 sewing-thread observations form the largest group in the dataset because thread size, construction and availability determine much of the practical seam architecture. The represented bag and leather-goods families include Strongcore, Strongcore Recycled, Strongcore WRe, Strongbond, Onyx, MercifilGD and Serabraid.

Tex expresses linear density, so a higher Tex number indicates more mass per unit length. That normally accompanies a thicker, more substantial thread, although construction, fiber type and bonding also affect strength and abrasion behavior. In a handle seam, increasing thread size can improve the load carried by each stitch, but it also requires a larger needle and greater clearance through the material stack.

Thread also has an aesthetic role in premium bags. Heavy topstitching can communicate strength, while fine tonal stitching can preserve a cleaner surface. The reinforcement specification therefore needs separate decisions for structural capacity and appearance. A hidden internal seam can use a different thread system from a decorative edge stitch.

Figure 1. Industrial bag and leather-goods thread sizes span a wide range, allowing seam scale to be matched to material thickness and structural demand.



Thread Strength and Elongation

Breaking load is only part of thread behavior

The government nylon-thread dataset provides a useful independent progression of minimum breaking strength. Representative values rise from approximately 1.8 lb-force at the fine end to 4 lb, 6 lb, 9 lb, 11.8 lb, 17.5 lb, 27 lb, 36 lb, 54 lb and finally about 72 lb-force for the heaviest listed constructions. This progression shows why thread sizing is a genuine structural decision rather than a purely visual one.

Elongation complicates the picture. Many of the represented thread specifications permit maximum elongation around 30% or 35%. Some extension under load can be useful because it allows individual stitches to share a transient shock instead of forcing the first stitch to absorb the entire event. A completely rigid connection can create high peak loads when a bag is dropped into the hand or swung while walking.

Too much movement, however, can undermine perceived quality even without rupture. A handle that lengthens, a seam that opens visibly or a tab that shifts under load may be judged as failing long before the thread breaks. The quality target is therefore controlled deformation. Thread should have enough reserve strength and toughness to survive shocks, while the surrounding seam and leather should limit permanent movement.

Figure 2. Representative nylon-thread minimum breaking strength rises sharply with thread size, while finished seam strength remains dependent on substrate and geometry.



Needle Size, Hole Geometry and Stitch Integrity

Heavy thread must be matched to controlled perforation

The 64 needle-compatibility observations show the scale of the industrial pairing problem. Represented recommendations extend from approximately Nm 80 / No. 12 for finer thread through Nm 90, 100, 110, 120, 130, 140, 160, 180, 200 and up to around Nm 230 / No. 26 for the heaviest constructions. Moving through that range changes far more than machine setup.

A needle that is too small can abrade or overheat heavy thread, produce skipped stitches, deflect through a thick stack or damage the thread during penetration. A needle that is unnecessarily large creates excess clearance, weakens the leather ligament between neighboring holes and may leave a visibly coarse seam. This is especially important on narrow anchor tabs where the distance from stitch line to edge is limited.

Needle point geometry also matters, particularly in leather, but the central governance issue is compatibility. A change in thread size should trigger review of the needle, stitch length, seam allowance and sample performance. Production teams should not treat the needle as an independent consumable selected solely by the sewing operator.



Stitch Density and Perforation Balance

More stitches are not automatically stronger

A stitching reference of 7 stitches/cm, approximately 18 stitches/in, demonstrates how dense industrial sewing can become. In fabric, additional stitches can increase the number of load-transfer points and improve seam uniformity. In leather, however, every stitch creates a hole that permanently removes material.

Sparse stitching creates the opposite problem. When stitches are too far apart, each stitch carries a greater share of the load, local seam opening can become visible, and the material between stitches can deform substantially. The optimum is therefore a balance: enough stitches to distribute force but enough intact leather between penetrations to preserve tear resistance.

Thread-consumption data reinforce the process implications. A represented lockstitch example uses roughly 2.5 cm of thread per centimetre of seam, while a chainstitch example is around 5.5 cm/cm and overedge constructions can require substantially more. These figures are not handle-strength rules, but they show how stitch class and density affect material use and production planning.



Webbing Reinforcement and Hidden Load-Carrying Structure

High raw strength shifts attention to the attachment

The 24 webbing observations demonstrate the large mechanical reserve available from hidden reinforcement. Selected nylon products range from about 1,250 lb-force breaking strength for a narrow heavy-duty webbing to approximately 7,400 lb-force for a 50.8 mm heavy-duty construction. Other examples include roughly 1,500 lb-force, 2,000 lb-force and 4,100 lb-force.

The design problem is not simply choosing the highest number. Widths in the dataset span approximately 12.7 mm, 25.4 mm, 38.1 mm and 50.8 mm, while thicknesses range from about 1.07 mm to 1.86 mm. A webbing that is too wide or thick can create a hard ridge inside a slim luxury handle, resist folding at the ends and become visible through soft leather.

Manufacturer guidance represented in the dataset also shows why service load should remain below ultimate tensile strength. Recommended use fractions sit around 25% to 50% of tensile capacity for selected products. A handbag specification should be more conservative still because the finished assembly includes stitching, bends, holes, leather, adhesives and hardware.

Figure 3. Selected nylon webbing breaking strengths substantially exceed realistic handbag service loads, shifting attention toward attachment and termination quality.



Reinforcement Width, Thickness and Load Distribution

Geometry determines where strong materials actually work

Reinforcement width controls bearing area. A 12.7 mm strip concentrates tension into a relatively narrow path, while a 50.8 mm strip can spread load across a much broader region if the product architecture allows it. That broader area can engage more stitches and more leather, reducing the force carried by each individual point. Width therefore functions as a mechanical multiplier even when the reinforcement material itself is unchanged.

Thickness operates differently. The represented webbing examples range from roughly 1.07 mm to 1.86 mm. Greater thickness can raise stiffness and abrasion resistance, but it also increases bulk at folds and terminations. In thin leather, an abrupt step from unreinforced to heavily reinforced material can become a hinge. Repeated flexing then concentrates at the edge of the reinforcement, moving the failure location rather than eliminating it.

Premium construction needs a controlled stiffness gradient. Reinforcement can taper, extend beyond the visible anchor, overlap with a backing patch or be split across layers so that no single edge becomes the new stress riser. The visible bag can remain refined while the internal architecture quietly increases the area that shares load.



Leather Tensile Strength and Handle-Body Performance

The substrate places a ceiling on usable reinforcement

Leather and leather-like material results in the dataset span a broad study-specific range. Selected tensile values include approximately 4.82 MPa, 5.4 MPa, 10.4 MPa, 12.45 MPa, 12.5 MPa, 13.4 N/mm², 14.31 N/mm² and 20.1 N/mm². These results should not be averaged into a universal leather benchmark because the materials, treatments, thicknesses and test programs differ.

Tensile strength matters most in the handle span, where the material is pulled along its length. A reinforced strap can use hidden webbing to reduce the amount of tensile stress carried by the leather, which is especially useful for soft, stretch-prone or thin skins. But the attachment zone has a different mechanical problem.

Material selection should therefore be connected to the intended construction. A lower-strength but flexible leather may perform well when load is carried by internal tape and the anchor is generously backed. A stronger but brittle material can still crack at folds or fail around closely spaced holes.

Figure 4. Selected leather and leather-like tensile results vary widely across materials and study conditions; values should be interpreted as material-specific evidence rather than one universal benchmark.



Tear Strength and Stitch-Tear Resistance

Handle anchors fail locally before materials fail globally

Tear and stitch-tear measurements are especially relevant at handle ends. A selected shoe-upper benchmark in the dataset uses a minimum stitch-tear value around 80 N/mm and a minimum tear value around 30 N/mm. Other study-specific tear results include approximately 53.3 N/mm, 72.47 N/mm, and more than 80 N/mm in selected leather samples.

The distinction between tensile strength and tear resistance explains many real failures. Tensile testing stretches a specimen across a defined section. A handle seam, by contrast, introduces a series of small holes. The thread loads the material at the edges of those holes and can initiate a crack. Once the crack begins, the remaining load moves to fewer stitches, accelerating the tear.

Therefore, anchor design should respond to stitch-tear performance rather than simply selecting stronger thread. Increasing edge distance, widening the tab, extending reinforcement behind the stitch line and reducing hole diameter can all increase practical joint capacity without changing thread strength. Finished-handle testing should also record whether failure occurred in the thread, within the leather, at a stitch line, around hardware or at a reinforcement termination.





Handle Anchor Geometry and Stress Concentration

Area is one of the most effective reinforcement tools

A handle end is a geometric transition from a narrow strap to a larger bag panel. If the strap terminates in a short, narrow tab, the entire carried load can be forced through a small stitch pattern. Sharp corners and seam ends further concentrate stress.

The strongest geometry is not necessarily the largest visible patch. Luxury products often need the reinforcement to disappear inside a clean silhouette. The engineering task is to distribute load without creating visual bulk. This can be achieved through internal layers, shaped reinforcement, stitch patterns that follow the load path and sufficient edge distance.



Hardware Reinforcement Versus Stitched Reinforcement

Metal strength must be matched to substrate support

Hardware changes the way force enters the bag. A fully stitched tab distributes load through many thread crossings over a relatively broad area. A rivet or screw concentrates load around one or more holes. A D-ring or similar fitting introduces movement and changes the direction of force each time the bag swings.

Metal parts often have far greater raw strength than the surrounding leather. That can be misleading during visual assessment. A robust ring or rivet may survive while the hole enlarges, the backing tears or the panel distorts. A high-quality hardware attachment therefore depends on washers, backing plates, layered leather, internal tape or other structures that increase the bearing area around the fitting.

Hybrid systems can provide useful redundancy. A stitched tab can wrap around hardware while hidden tape continues into the bag wall. A rivet can supplement rather than replace stitching. Such constructions create multiple load paths, but they also increase production complexity and the number of opportunities for misalignment.





Static Strength Versus Repeated Carrying

One successful pull does not prove lifecycle durability

Static pull testing is useful because it reveals gross weakness, but real carrying creates repeated lower-level loads. A handbag is lifted from the floor, set down, swung while walking, moved between hand and forearm, twisted during opening and occasionally loaded asymmetrically. Each event produces small changes in tension, shear and bending direction.

Fatigue is especially important at stiffness transitions. A reinforced handle may remain rigid along its center while flexing repeatedly where the reinforcement ends. Leather can crease or crack at that boundary. Stitching can wear where it rubs against a hard edge or metal fitting. Adhesive layers can gradually separate under repeated peel.

A lifecycle test should therefore measure more than pass/fail. Useful observations include permanent elongation, seam opening, tab deformation, stitch abrasion, reinforcement migration, rivet rotation, ring wear and surface cracking. The best reinforcement is recoverable in the same sense that premium material quality is recoverable: after unloading, the handle returns close to its original geometry and the attachment remains stable.



Human Carrying Loads and Design Context

Service load must be separated from ultimate material strength

Human-factor data provide useful scale for realistic testing. The represented UK manual-carrying risk filter includes low-risk context around 5 kg for men and 3 kg for women under the specified conditions. These figures are not handbag design limits and should not be presented as universal safe loads.

A handbag handle should therefore be designed with a safety margin over expected service loading, then evaluated under repeated cycles. The exact test load depends on product type, volume, intended use, strap geometry and brand positioning. A small evening bag and a work tote do not create the same realistic load envelope.

Comfort should also influence the service definition. A handle may be structurally capable of carrying more weight than a user can comfortably support. The final quality target is not to advertise the theoretical breaking strength of hidden reinforcement. It is to provide enough structural reserve that the handle remains secure under realistic loading while preserving the hand feel, flexibility and proportions expected from the product.



Handle Width, Comfort and Pressure Distribution

Structural strength must remain wearable

The user's hand experiences load as pressure, and pressure is strongly influenced by contact area. A narrow, rigid handle can be structurally strong yet uncomfortable under a moderate load because the force is concentrated into a small strip of the hand.

Rolled handles and flat handles solve this problem differently. A rolled handle creates a rounded contact surface and can hide a strong internal core, but it may concentrate pressure if the diameter is small. A flat handle can spread pressure over a larger width but must control edge stiffness and folding. Internal reinforcement should support the intended shape rather than make the handle feel like a rigid bar.

Comfort and durability therefore converge at geometry. Sufficient width can improve both load distribution into the hand and load distribution into the anchor, but only if the transition to the bag is also designed correctly. A premium benchmark should record handle width, thickness, stiffness and permanent deformation alongside mechanical test results so that a stronger construction does not inadvertently create a poorer carrying experience.



Laboratory Standards for Handle Reinforcement

Component tests and finished-product tests answer different questions

The dataset includes several established test-method references that support a layered reinforcement program. ISO 3376:2020 addresses leather tensile strength and elongation. The ISO 3377 series addresses leather tear behavior. ISO 13934-1:2013 provides a textile maximum-force and elongation framework, while ISO 13935-2:2014 addresses seam maximum force using a grab approach. ASTM D5034 provides another widely used textile breaking-strength method.

A strong test plan begins with materials. Leather tensile and tear data establish the substrate baseline. Thread breaking strength and elongation show the capacity of the sewing medium. Webbing tensile data show the reserve available from hidden reinforcement. Seam testing then determines how those components interact in a stitched joint.

The distinction matters because the same materials can perform very differently when assembled. A high-strength thread may cut through soft leather. A strong webbing may slip because its termination seam is too short. A compliant leather sample can crack when folded tightly around hardware. Laboratory governance should therefore define which tests qualify materials, which validate seams and which release the finished product.





Thread Consumption and Production Engineering

Durability has a manufacturing cost structure

Reinforcement specifications influence production time and material consumption. Technical guidance represented in the dataset uses typical sewing-thread wastage allowances of approximately 10–15%. One sample calculation moves from 540 cm of thread before allowance to 621 cm after a 15% addition. While those numbers are only an example, they illustrate how dense or complex handle seams multiply thread usage across high-volume production.

Heavier thread can also increase needle wear, machine tension requirements and operator sensitivity. Multiple reinforcement layers increase penetration resistance and may require slower sewing. Longer anchor tabs use more leather or backing material. Additional rivets or hardware introduce separate setting operations and inspection steps.

Production engineering should focus on repeatability. A reinforcement design that performs exceptionally only when assembled by a highly skilled sample maker is not yet production-ready. The seam allowance, reinforcement position, stitch density, needle/thread combination and hardware setting should tolerate normal manufacturing variation without moving the product close to failure.



Reinforcement Failure Modes and Warning Signals

The failure location reveals the under-designed link

A failed handle should be treated as evidence, not simply rejected and discarded. Thread rupture points toward insufficient thread capacity, abrasion, heat damage or tension imbalance. Enlarged stitch holes suggest that the substrate was weaker than the sewing medium or that hole spacing was too tight. A crack running from the end of an anchor tab indicates geometric stress concentration.

Warning signals often appear before complete separation. The seam may open slightly under load. A tab can curl or stretch. The handle may lengthen permanently. A rivet can begin to rotate. A backing patch may telegraph through the leather as the panel distorts. Stitch holes can become oval. Recording these precursor conditions makes testing more useful because design teams can identify the mechanism before the product reaches catastrophic failure.

Quality reporting should therefore include failure mode, location, peak load, permanent deformation and the condition of neighboring components. A handle that fails at the thread and a handle that fails by tearing the bag wall may reach similar peak loads but require completely different corrective action.





Global Leather-Handbag Trade and the Commercial Value of Reinforcement

Durability matters most where product value and repeat use are high

Commercial context helps explain why handle reinforcement deserves dedicated quality governance. The dataset includes leather-surface handbag trade signals under HS 420221. Selected 2024 values place France near $5.84 billion in exports, Italy near $5.81 billion, and China around $1.08 billion. Earlier 2022 data also show substantial European Union, French, Italian, Hong Kong and Chinese trade volumes.

Handle failures have disproportionate commercial impact because they are difficult to hide or work around. A lining defect may remain invisible during use; a failed handle can make the bag unusable immediately. Even moderate stretching or cracking can undermine the perception of premium craftsmanship because the handle is touched on every carry and sits prominently in photographs.

The highest-value market positions also create a durability expectation that exceeds mere survival. A premium handle should retain symmetry, edge shape, stitch alignment and hardware orientation. This shifts the benchmark from 'does not detach' toward 'continues to look and feel controlled after repeated use.' Strong reinforcement can therefore support both functional reliability and perceived luxury by keeping the most handled component stable over the life of the product.



Regional and Country-Level Handle Reinforcement Signals

Geography provides manufacturing and market context, not a quality shortcut

Regional data should be interpreted through role rather than stereotype. France and Italy appear in the dataset as high-value leather-handbag export markets, with 2024 values of approximately $5.84 billion and $5.81 billion respectively. China appears as a large production and export base at roughly $1.08 billion in the same represented category.

The United States contributes a different kind of evidence through government nylon-thread specifications and technical ergonomics guidance. Those standards provide independent physical benchmarks for thread strength, elongation and material handling rather than trade leadership. The United Kingdom contributes human-factor context through manual-carrying risk filters.

Country-level reporting becomes valuable when it connects statistics to a role in the reinforcement system. Premium export markets raise expectations for appearance retention and repairability. High-volume manufacturing regions emphasize process repeatability and supplier controls. Standards-producing markets provide test frameworks. None should be converted into a geographic quality ranking. Finished performance still has to be verified at batch, seam and product level.





Building the Handle Reinforcement Benchmark Index

Eight weighted pillars convert the report into an operating score

The Handle Reinforcement Benchmark Index assigns 18% to anchor geometry and load distribution, the largest single weight, because even exceptionally strong materials can fail when force is concentrated into too little area. Leather tear and stitch-tear resistance receive 16%, reflecting the tendency of anchor zones to fail locally around holes and seam edges.

Lifecycle and cyclic-load retention receive 12% because static capacity does not reveal whether the handle stretches, cracks or loosens over repeated use. Hardware and attachment security receive 10%, recognizing that metal parts, rivets, rings and screws can create concentrated bearing zones. Material, needle and process compatibility receive 8%, while documentation and quality control receive the remaining 7%.

Scores from 0–39 indicate weak or poorly reinforced construction, 40–59 commercial basic, 60–74 developing durable construction, 75–89 professional premium and 90–100 exceptional reinforcement performance. A critical-failure override should apply. If the handle detaches, tears through the anchor, develops unsafe hardware movement or undergoes unacceptable permanent deformation during the defined test cycle, the overall product should not qualify for a premium score regardless of strong sub-scores elsewhere.

Figure 5. The benchmark gives the greatest weight to load distribution, substrate tear resistance and stitch integrity while preserving lifecycle, hardware and process controls.



Handle Reinforcement Quality Challenges

The first challenge is the gap between raw material strength and finished-joint strength. Webbing can be rated in thousands of pounds while realistic handle capacity is governed by stitching, leather and geometry. Thread can meet a strong minimum break requirement while the seam still fails by pull-through.

The second challenge is leather variability. Thickness, temper, tanning, fiber direction, surface finishing and moisture history change how a leather behaves around stitch holes and folds. Two lots that look similar can respond differently to dense stitching or hardware setting. Process settings therefore need enough tolerance to handle normal material variation without placing the construction close to a tear threshold.

The third challenge is invisibility. Internal tape, backing patches and reinforcement overlaps are hidden after assembly. A sample can look excellent while reinforcement is too short, off-center or omitted. This makes process inspection and traceable specifications critical. Static testing catches severe mistakes but may not detect marginal constructions that weaken gradually.



90-Day Handle Reinforcement Benchmark Plan

Days 1–30 should establish the construction baseline. Record handle type, length, width, thickness, leather specification, thread family, Tex or ticket size, needle, stitch density, seam allowance, reinforcement material, reinforcement width, backing dimensions, attachment method and intended use. Photograph the handle end and, where possible, retain an opened reference sample showing internal layers. The goal is to make the load path visible in documentation before testing begins.

Days 31–60 should validate components and joints. Confirm leather tensile and tear evidence, thread strength, webbing specifications and relevant test methods. Run seam or representative anchor tests before relying on finished-bag pulls alone. Measure deformation as well as failure force, and document whether the weak point is thread, stitch hole, tab edge, reinforcement termination, hardware or bag panel.

Days 61–90 should focus on lifecycle performance. Cycle the handle through repeated loading and unloading, then inspect permanent elongation, seam opening, stitch wear, reinforcement migration, leather cracking, hardware rotation and panel distortion. Feed results back into the construction specification and supplier-control plan. The final output should be a repeatable approval method that defines both a static safety margin and a lifecycle acceptance condition, rather than a one-time sample result.



Metrics Handbag Brands and Manufacturers Should Track

Material metrics should include leather tensile strength, tear resistance, stitch-tear performance, thickness and elongation where available. Stitching metrics should capture thread type, Tex or ticket size, thread breaking strength, needle size, stitch density and seam failure mode. Reinforcement metrics should record webbing width, thickness, tensile specification, overlap or termination length and backing area. These values explain why two visually similar handles can perform differently.

Finished-product metrics should move beyond one maximum-load result. Track static test load, cyclic load count, permanent handle elongation, seam movement, tab deformation, hardware rotation, visible cracking and whether the handle returns to its original geometry after unloading. Production metrics should include reinforcement-position defects, skipped stitches, wrong needle or thread incidents and hardware-setting variation.

Consumer and repair data complete the picture. Handle-related returns, cracked tabs, detached straps, stretched handles, loosened rings and repeat repair frequency can identify failure modes that short laboratory programs miss. A very high pass rate is not sufficient if the remaining failures cluster around the same construction or supplier.



How Handle Reinforcement Changes by Business Model

Tanneries and material suppliers control the substrate on which reinforcement depends. Their contribution is consistent thickness, tensile behavior, tear resistance and surface characteristics. Thread suppliers control linear density, breaking strength, elongation, bonding and abrasion performance. Webbing and reinforcement suppliers control width, thickness, tensile capacity and dimensional consistency. These upstream roles establish the material potential of the handle but do not determine the finished load path.

Handbag manufacturers convert those materials into performance through cutting, skiving, folding, reinforcement placement, stitching, adhesive use and hardware setting. Their process decisions determine edge distance, tab geometry, seam length and whether internal reinforcement actually overlaps the critical zone. Brands then define the intended carrying use, test requirement, visual standard, quality limit and repair policy.

Testing laboratories provide standardized evidence, but they cannot repair an unclear specification. Repair specialists and return data provide another valuable feedback stream because they show where products fail after real ownership. The strongest business model therefore closes the loop: upstream materials are specified, factories build to a controlled geometry, laboratories verify representative performance, brands track field outcomes and recurring repair patterns feed back into the next construction revision.



The Handle Reinforcement Report FAQ

What makes a handbag handle strong?

A strong handle uses a balanced load path. The visible strap, internal reinforcement, stitching, anchor geometry, bag panel and hardware share force without allowing one narrow point to become the critical failure zone. Raw material strength matters, but finished performance depends on how those materials are connected.

Does thicker leather automatically make a stronger handle?

No. Thickness can increase material volume, but tear resistance, fiber structure, folding, finish, stitch spacing and reinforcement design are equally important. A thick leather can still tear around poorly placed holes, while a thinner leather can perform well when internal tape carries tension and the anchor is generously backed.

Is stronger thread always better?

No. Government nylon-thread benchmarks represented in the dataset extend up to about 72 lb-force, but heavier thread requires a larger needle. Larger holes can reduce the amount of intact leather between stitches. Thread size should therefore be matched to substrate tear resistance, seam geometry and the intended load.

What does Tex mean in sewing thread?

Tex is a linear-density measure. Higher Tex values indicate greater mass per unit length and generally a heavier thread. The represented industrial bag and leather-goods ranges extend from relatively fine sizes through heavy constructions near 400 Tex and above.

Why is nylon webbing used inside handbag handles?

Webbing can carry longitudinal tension, limit leather stretch and distribute load through the handle. Selected products in the dataset range from approximately 1,250 lb-force to 7,400 lb-force raw breaking strength. Those figures are material benchmarks, not finished-handle ratings.

How strong can reinforcement webbing be?

The heaviest selected example reaches approximately 7,400 lb-force breaking strength at about 50.8 mm width. Such a figure mainly shows that the webbing is unlikely to be the weakest element in ordinary handbag use. The practical limit normally shifts to stitching, termination, leather or hardware.

What is stitch-tear strength?

Stitch-tear strength describes how well a material resists tearing when load is introduced through a stitch or similar concentrated line. A selected benchmark in the dataset is around 80 N/mm. It is highly relevant to handle anchor tabs because those zones can fail around stitch holes while the thread remains intact.

How many stitches should a reinforced handle use?

There is no universal number. The dataset includes a process reference of 7 stitches/cm, about 18 stitches/in, but a leather handle should use a density compatible with needle size, thread thickness, edge distance and tear resistance. Excessive density can create a perforation line.

Should handbags be tested with static or repeated loads?

Both. Static testing identifies gross weakness and establishes peak capacity, while repeated-cycle testing reveals stretching, seam movement, cracking, hardware looseness and reinforcement slip that develop gradually. Premium durability requires acceptable performance under both conditions.

What usually fails first in a handbag handle?

The answer depends on the construction. Common weak points include thread, the leather between stitch holes, the end of an anchor tab, the edge of a reinforcement patch, rivet holes and hardware interfaces. Recording the exact failure mode is more useful than recording only the maximum load reached.

Final Takeaway

Handle reinforcement is a systems problem expressed through materials. The dataset behind this report contains 432 statistics spanning thread, needles, breaking strength, elongation, webbing, leather mechanics, stitching processes, laboratory methods, ergonomics and market geography. That breadth reflects the reality of the product: no single number can represent the entire handle because the load crosses multiple materials and connections before it reaches the bag body.

The raw strength range can be dramatic. Government nylon-thread examples reach approximately 72 lb-force, while selected heavy nylon webbing reaches about 7,400 lb-force. Those figures create useful mechanical reserve, but they do not define a handbag's safe or premium carrying capacity. The surrounding leather, stitch holes, anchor dimensions, reinforcement terminations and hardware interfaces usually create much lower practical limits.

Leather mechanics explain why balance matters. Tensile values in the dataset vary from roughly 4.82 MPa to 20.1 MPa across different materials and studies, while selected tear and stitch-tear benchmarks occupy a separate range. A construction that ignores those local failure modes can place a strong thread through a weak substrate and simply move the failure into the leather.

Premium handle reinforcement is therefore controlled load transfer. The best construction spreads realistic repeated carrying force across thread, leather, reinforcement, hardware and bag structure while preserving shape, comfort and visual quality. The practical standard is not the highest component rating. It is a handle that continues to look aligned, feel secure and return to a stable geometry after the cycles of lifting, movement and handling that define real use under realistic repeated carrying loads.
