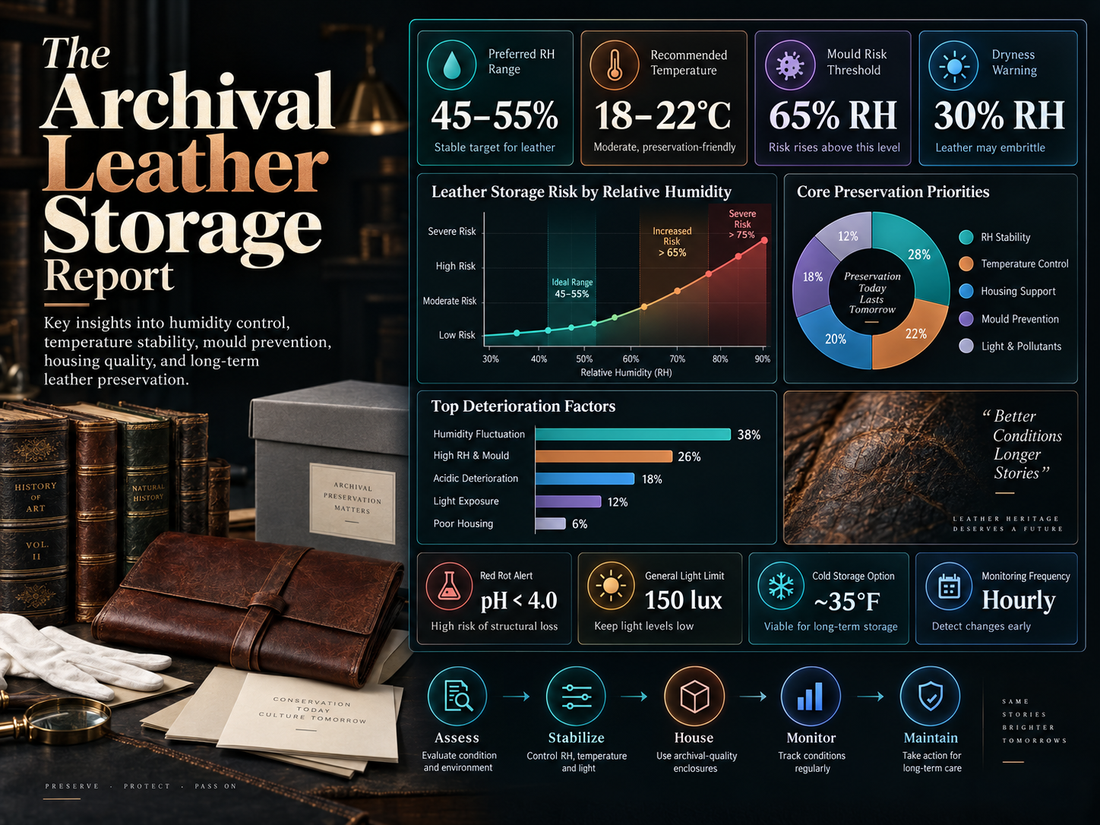

The Archival Leather Storage Report

Archival leather storage balances moisture, temperature, chemistry, support and time. Historic leather-bound books, cases, portfolios, straps, skins and three-dimensional objects can remain visually impressive while collagen weakens, surfaces powder or bindings lose flexibility. Storage must therefore slow chemical change while limiting mould, abrasion, distortion and dimensional stress.

The direct conservation benchmarks converge around a moderate environment rather than an extreme one. A commonly recommended range for leather and leather bindings is about 45–55% relative humidity, with temperatures around 18–22°C. Those figures sit between two opposing risks. When RH falls toward or below roughly 30%, degraded leather can become increasingly dry and vulnerable to handling. When RH climbs above about 65%, conditions become progressively more favourable for mould, and the time available for intervention can shorten dramatically as humidity rises.

Leather often forms part of a composite object containing paper, board, adhesive, thread, metal, pigments, parchment or textile. A climate suitable for the leather surface can still stress other components if humidity changes quickly. The preservation question is therefore whether the room, enclosure, shelf and monitoring system keep the whole object within a stable, supportable range.

This report follows archival leather from humidity and temperature through mould, chemical deterioration, light, pollutants, housing, cold and anoxic storage, monitoring and facility protection. The goal is to distinguish an apparently controlled room from one that remains demonstrably stable over time. Environmental targets, enclosure chemistry, support and monitoring must reinforce one another.

Executive Archival Leather Storage Benchmarks

The numbers that define a stable leather-storage environment

A practical preservation baseline centers on about 45–55% RH for leather and leather-bound material, with broader museum operation around 40–60% RH where mixed collections require flexibility. General temperature guidance commonly centers on 18–22°C. Together, these values define a moderate zone that balances flexibility with lower biological and chemical risk.

Warning thresholds matter just as much. Around 30% RH, dryness and flexibility loss become concerns; around 65% RH, mould risk rises; and 75% RH represents distinctly damp conditions. Duration changes the consequence, so sustained exposure is more serious than a brief excursion.

Light and ultraviolet exposure add a separate cumulative risk. General book collections may be kept around a maximum of 150 lux for display, while very light-sensitive manuscript or decorated material can require approximately 50 lux. Ultraviolet content is commonly limited to about 75 microwatts per lumen. These values matter because fading and photochemical change accumulate even when the room remains otherwise stable.

Chemical condition also changes how aggressively an object must be protected. Leather with a pH below about 4.0 may show the kind of acidic deterioration associated with red rot, while a very low shrinkage temperature near 35°C is a warning of serious collagen damage. At that stage, support, isolation and minimal handling become as important as room climate.



Why Leather Requires a System-Based Storage Benchmark

Leather behavior reflects skin structure, tanning chemistry, age, treatment history and object construction. A cover stretched over boards behaves differently from loose skin; a saddle or case can collapse without support; and a portfolio may combine leather hinges, paper linings and metal fittings that respond differently to the same environmental change.

One good number cannot compensate for another weak control. A dry room may suppress mould but increase cracking risk; a cool room may slow chemistry yet become unsafe if RH remains high; and a well-controlled room can still damage objects through undersized boxes, overcrowded shelves or abrasive retrieval.

A system-based benchmark therefore separates four layers. Environment controls moisture and heat. Chemistry describes the leather's current vulnerability. Mechanics describes how the object is supported and handled. Monitoring proves whether the intended conditions actually persist. The strongest preservation program aligns all four rather than optimizing one in isolation.



Relative Humidity and Leather Stability

The central environmental variable

Leather exchanges moisture with surrounding air, affecting flexibility, dimensional behaviour and mould activity. The preferred 45–55% RH band provides a practical center for many leather and book collections, while wider institutional bands accommodate mixed materials and building limitations.

Below roughly 30% RH, susceptible leather can lose flexibility and become more vulnerable during opening or retrieval. Heated interiors without humidification can fall to about 5% RH in winter, creating extreme dryness that increases mechanical risk for organic materials.

At the upper end, the risk changes from dryness to biological and chemical activity. Around 65% RH, mould becomes a serious concern for leather and related organic material. At about 75% RH, the environment is plainly damp and the margin for delay becomes small. Because water activity and temperature interact, the same RH can produce different practical outcomes in different spaces, but sustained readings above the mould threshold require rapid investigation.

The practical goal is a stable middle range with limited time outside it. Archives should track averages, minimums, maximums and hours above risk thresholds. An annual average of 50% RH can conceal repeated nights at 70% and afternoons at 30%, which is very different from remaining near 50% continuously.

Figure 1. A moderate 45–55% RH zone sits between dryness concerns below about 30% and increasingly serious mould risk above roughly 65%.



RH Fluctuation and Dimensional Stress

Averages describe the center of an environment; fluctuations describe its mechanical character. National museum guidance commonly limits short-term RH change to around 5% within 24 hours and may use annual tolerances around ±8% from a set point. Other collection standards prefer about ±5% where the building can sustain it. These limits matter because repeated moisture exchange can cause organic components to swell and contract at different rates.

The significance of a fluctuation depends on both amplitude and sensitivity. A 5% RH cycle is generally less threatening than a 20% or 40% swing, but a fragile constrained object may respond more strongly than a free, stable sample. Leather adhered to boards, stretched around a case or combined with rigid metal components can experience localized stress when its dimensions try to change but the rest of the object resists movement.

Fluctuation is best treated as a spectrum. Small changes may cause no visible damage, while larger repeated cycles can progress from minor effects to severe damage depending on the object. Daily HVAC cycling can accumulate thousands of events over a decade even when each swing looks modest.

The management implication is simple: stability is valuable even when the exact set point is not perfect. A room holding steady at 48–52% RH can be safer than a theoretically ideal 50% target that repeatedly oscillates between much wider extremes. Monitoring should therefore capture the shape of the environmental record, not merely the monthly mean.



Temperature and Chemical Deterioration

Why cooler storage can extend material life

Temperature affects the rate of chemical change in leather, paper, adhesives and many associated materials. General guidance around 18–22°C provides a practical balance between preservation and human use. Some rawhide and semi-tanned material is recommended below about 25°C, particularly where higher temperature would combine with moisture to increase deterioration and mould activity.

One widely used conservation rule of thumb illustrates the value of moderate cooling: reducing temperature from about 23°C to 18°C - a decrease of 5°C - can approximately halve the rate of certain chemical deterioration processes. This does not mean every reaction in every leather object follows an identical curve, but it demonstrates why a modest reduction in temperature can produce a meaningful long-term preservation benefit.

The relationship must be managed with RH. If a building cools air without appropriate moisture control, relative humidity can rise. Conservation guidance notes that a temperature change of about 3°C can correspond to an RH change of roughly 10% under some conditions. A strategy intended to slow chemistry can therefore create mould or dimensional risk if temperature is changed without considering moisture.

The best temperature target is consequently one the facility can maintain with stable RH, adequate monitoring and minimal condensation risk. Cooler storage is valuable when it is controlled, not when it produces an unstable microclimate around the object.

Figure 2. A 5°C reduction from 23°C to 18°C is used as a conservation rule-of-thumb example associated with roughly half the deterioration rate for some chemical processes.



Mould Risk and High-Humidity Exposure

How quickly visible growth can develop

Mould turns humidity from a gradual preservation variable into a time-sensitive risk. Conservation modelling for highly sensitive organic materials shows how strongly exposure time contracts as RH rises. At about 70% RH, visible mould may take on the order of 100 days under favourable conditions. At 80% RH, the period can fall to around 10 days. At 90–100% RH, visible growth may appear in roughly 2 days.

These figures do not predict the exact day mould will appear on every leather object; temperature, spores, contamination, airflow and nutrients also matter. They do show why high-RH alarms should be judged by both magnitude and duration, with faster inspection and correction as conditions approach saturation.

Leather, skin and parchment are among the organic materials that can be highly sensitive to mould when conditions are favourable. Some surfaces may permit growth around 60% RH, while practical leather guidance commonly treats about 65% RH as an important upper warning point. Periods below about 55% RH can interrupt the progress of some intermittent growth conditions, reinforcing the value of returning a damp collection to a safe range quickly.

Mould response should therefore combine environmental correction with object inspection. If a leak, HVAC failure or seasonal event pushes RH high, the storage team should identify how long the excursion lasted, which zones were affected, and whether objects show visible bloom, odour or surface change. The environmental record provides the timeline that a spot inspection cannot reconstruct after the fact.

Figure 3. Approximate visible-mould timing falls from about 100 days at 70% RH to around 10 days at 80% RH and roughly 2 days at 90–100% RH under favourable conditions.



Red Rot, Acidity and Chemical Breakdown

Red rot is one of the clearest reminders that leather can look like a mechanical object while failing chemically from within. Historic vegetable-tanned leather affected by advanced acidic deterioration may become reddish-brown, powdery and friable. The surface can transfer onto hands, shelves or adjacent objects, and flexing that would once have been harmless may cause permanent loss.

A pH below about 4.0 is used as an important warning signal in leather conservation discussions. It does not by itself diagnose every form of deterioration, but it indicates an acidic environment associated with increased chemical vulnerability. Shrinkage temperature provides another specialized measure of collagen condition. A very low value near 35°C can indicate severely deteriorated leather and may justify consideration of cooler storage or other specialist measures.

Storage practice changes once leather reaches this state. The objective shifts from keeping an ordinary object tidy to minimizing every unnecessary mechanical event. Powdering surfaces benefit from individual enclosures that prevent transfer. Brittle bindings need support that allows retrieval without gripping exposed leather. Books that cannot stand safely may require flat storage or custom boxes. Three-dimensional objects may need shaped supports so their own weight does not create new cracks.

Treatment decisions should remain separate from routine storage. Oils, dressings and consolidants can alter appearance and chemistry and should not be applied simply because the leather feels dry. The safest archival response is condition assessment, environmental stabilization and specialist conservation advice where active intervention is required.



Light and Ultraviolet Exposure

Light damage is cumulative and often irreversible. Leather can fade, darken, oxidize or lose surface coatings under prolonged exposure, while pigments, paper labels and textile components attached to the same object may be even more light sensitive. This is why archival storage rooms should normally remain dark when not in use and why display limits are much lower than ordinary office lighting.

General book guidance uses approximately 150 lux as an upper illuminance level for many materials, while very light-sensitive manuscripts, decorated surfaces or vulnerable pigments may require around 50 lux. Ultraviolet radiation adds a photochemical component that is commonly limited to about 75 microwatts per lumen. These figures describe exposure control rather than a promise of zero damage.

Because dose accumulates, duration matters as much as intensity. A leather-bound volume exposed at a modest level for months can receive more total light than a short exhibition at a somewhat higher level. Storage policy should therefore combine low illuminance, UV control and limited exposure time, with especially sensitive or already faded leather kept away from daylight and unnecessary display lighting.



Pollutants and Reactive Gases

Air quality becomes important when leather, adhesives and metal components are exposed to reactive gases for long periods. Federal archival facility standards establish low room-level limits for sulfur dioxide, nitrogen dioxide and ozone - each around 5 micrograms per cubic metre in the selected specification. Acetic acid is also monitored because off-gassing from construction or enclosure materials can create a chemically active microenvironment.

The mechanism differs by pollutant. Sulfur and nitrogen oxides can contribute to acidification. Ozone is a strong oxidant that can attack organic surfaces. Acetic acid and formaldehyde may be released from wood products, coatings, adhesives or other materials near the collection. In a tightly sealed cabinet or exhibit case, even a small source can become more concentrated than it would be in a ventilated room.

This is why archival specifications extend beyond the object itself. Shelving finishes, box board, adhesives and nearby materials can emit reactive compounds, so storage design must consider both incoming outdoor pollution and pollutants generated within the enclosure or room.



Archival Housing Materials and Leather Protection

Boxes, folders and inert enclosure systems

An archival enclosure performs two jobs at once. Chemically, it should avoid introducing acids, sulfur compounds, lignin-rich fibres or unstable adhesives. Mechanically, it should support the object, protect the surface from abrasion and make retrieval easier. The statistical specifications for archival boxes and folders therefore include both chemical and structural tests.

Selected paperboard specifications use pH values around 8.0–9.5, with alkaline reserve commonly around 3–6% calcium carbonate. Reducible sulfur is held below approximately 0.0008%, and Kappa number is limited to about 5 in several paper-based enclosure standards. These numbers are quality-control limits for the housing material; they do not mean leather itself should be alkalized to the same pH.

Physical tests are equally detailed. Folder and box specifications measure thickness, folding endurance, bending resistance, abrasion loss and adhesive performance under controlled temperature and RH. The logic is practical: a chemically stable box that collapses under weight can still damage a leather-bound volume, while a strong box with a rough or unsuitable interior can abrade a powdering surface during every retrieval.

The enclosure should fit the object rather than the shelf slot. Large bindings need clearance and support; powdering leather may need individual isolation; and three-dimensional forms may need custom supports. Archival chemistry matters, but so do box strength, smoothness, retrieval clearance and load distribution.



Acid-Free Boxes, Folders and Structural Performance

Federal archival box specifications illustrate how much engineering sits behind a simple-looking container. One acid-free archives box design uses paperboard around 0.060 inches thick with a tolerance of about 0.005 inches. Structural requirements include bending resistance, edge reinforcement and pull components intended to survive repeated handling. Other archival boxes specify minimum burst and flat-crush strength so stacked containers do not deform under normal loads.

These engineering values matter especially for leather-bound volumes because they can be dense and mechanically awkward. A heavy book stored in a weak container can distort the box, which then transfers load unevenly to the cover or spine. A large leather portfolio can slump in excess space and abrade along the bottom. A tight box can compress boards and raised decoration. Correct sizing is therefore as important as the archival quality of the board itself.

Folders and envelopes solve different problems. They separate surfaces, reduce direct handling and organize fragments or flat leather components. Polyester enclosures can provide inert visibility for some flat archival materials, but leather objects with friable surfaces should not be forced into slick sleeves that create static or abrasion. Housing format must respond to condition, form and handling route.

Label systems deserve attention as well. Archival box specifications test label adhesion because detached labels create both identification and handling risk. Reliable retrieval reduces unnecessary opening and movement of adjacent objects. Storage quality therefore includes the information architecture that lets staff locate an item without repeatedly disturbing an entire shelf.



Cold Storage and Specialist Leather Applications

Cold storage can slow deterioration but is a specialist tool rather than a default recommendation for every leather collection. Federal archival standards for high-sensitivity material use cold-storage conditions around 35°F with RH in the 30–40% range. Objects removed from such storage require controlled acclimatization, typically on the order of 4–24 hours, so that condensation does not form on a cold surface brought directly into a warm room.

Leather and fur case studies show different cool-storage approaches. One Canadian fur vault historically operated near 4°C and 50–60% RH before later being revised toward about 10°C. The experience highlights a key lesson: the preservation benefit of low temperature has to be balanced against system reliability, maintenance and the risk of failure. A complex environment that cannot be sustained may create more risk than a moderately cool room that remains stable.

Cold storage is most defensible for material with exceptional sensitivity or severe chemical deterioration, particularly where a conservator has evaluated the risks. Composite leather objects may contain adhesives, coatings, metals or papers that respond differently to cooling and rewarming. Packaging and acclimatization procedures therefore belong to the storage specification, not as optional extras.

For ordinary stable leather, a consistently moderate room remains the more practical baseline. The threshold for choosing cold storage should be driven by condition, significance and expected preservation gain rather than the assumption that colder is always better.



Anoxic and Sealed Storage Approaches

Anoxic or low-oxygen storage can be used in specialist preservation situations, particularly for pest control or selected vulnerable materials. The approach introduces a different set of variables because the barrier enclosure creates its own microenvironment. Canadian case-study guidance describes bagging arrangements in which planned volume is reduced by about 20% and storage is maintained near 50% RH and 20°C.

Sealing does not correct a poor internal climate. If leather is enclosed too damp, moisture can remain trapped; if enclosed too dry, brittleness can persist. Moisture should be stabilized before sealing, and the barrier selected for the intended duration and oxygen-control strategy.

Anoxic systems also complicate inspection. A conventional box can be opened quickly when a problem is suspected, while a sealed package may require a planned procedure. Documentation should therefore record packing date, internal condition, target environment and the reason the system was used.



Monitoring and Environmental Data Logging

Preservation quality depends on what happens between inspections. Federal archival standards call for temperature and RH to be recorded at least hourly, with sensor sensitivity around 2°F for temperature and 2% RH for humidity. Immediate environmental records may be retained for at least 12 months, while trend data can extend across five years. This turns the storage environment into a documented preservation record rather than a set of occasional readings.

A single wall display cannot describe an entire storage room. Exterior walls, upper shelves, floor-level zones, doorways and HVAC outlets can behave differently. One federal program uses more than 70 dataloggers and at least two in large storage bays, illustrating the need to monitor representative locations rather than assume uniformity.

Review frequency matters as much as logging frequency. Hourly capture creates the raw record. Monthly or routine review identifies drift. Quarterly validation can confirm that sensors remain trustworthy, while annual analysis reveals seasonal patterns. Five-year context shows whether a building is gradually becoming less stable even when no single month appears alarming.

For leather collections, useful derived metrics include hours above 65% RH, hours below 30% RH, maximum 24-hour swing, number of alarm events, and the duration of any HVAC failure. These measures connect environmental data directly to known preservation risks and make it easier to prioritize building improvements.



Archival Facility Standards and Disaster Protection

The storage room is only one layer of protection. Building systems determine whether a collection remains safe during fire, water events, power loss and HVAC failure. Federal archival standards call for fire-origin detection reliability around 99% with detection in less than 5 minutes, and they set performance objectives intended to limit the scale of holdings loss in a single incident.

Mechanical systems also require commissioning and long-term condition review. New archival facilities may undergo follow-up surveys after about two years, while older facilities can be reviewed at recurring intervals such as five years. The purpose is to detect envelope, roof, drainage, HVAC and structural problems before they become collection emergencies.

Water events are especially serious for leather because swelling, staining, mould and adhesive failure can occur together. Emergency plans should identify shutoffs, drying priorities, freezer access where appropriate, isolation areas and conservation contacts. No environmental set point can compensate for an unmanaged leak or fire response.



Regional and Institutional Storage Standards

Institutional guidance differs in detail but converges strongly in principle. Canadian leather and book guidance commonly centers on approximately 45–55% RH and temperatures around 18–22°C. It also emphasizes the sharp increase in mould risk above roughly 65% RH and the mechanical vulnerability of dry leather below about 30% RH.

United States National Park Service guidance frequently uses a broader 40–60% RH operating band for leather and skin collections, combined with tight limits on short-term change. Museum-wide guidance may target 45–55% RH with approximately ±5% fluctuation where feasible. The emphasis is therefore not only the set point but the ability of the building to hold that set point without damaging cycling.

Library of Congress book guidance places general storage at about 70°F or below and roughly 30–55% RH, a range designed for book collections that may include leather bindings alongside paper and board. National Archives standards use temperature and RH bands tailored to archival material sensitivity, with default loan conditions around 65–75°F and 35–50% RH, plus limits on short-term fluctuation.

These differences should not be read as contradictions. Each institution is optimizing for a collection type, building context and operational purpose. The common message is moderate temperature, controlled RH, limited fluctuation, suitable housing and documentation. A local policy should therefore select a realistic band and then demonstrate stability within it.



Building the Archival Leather Storage Quality Index

The Archival Leather Storage Quality Index converts the report into eight weighted pillars. Relative-humidity stability and moisture control receive 20%, the largest share, because both dryness and dampness can directly alter leather condition and because RH interacts with mould, mechanical flexibility and composite-object stress. Temperature control receives 16%, recognizing the influence of heat on chemical deterioration and biological activity.

Leather chemical condition receives 15%. This pillar covers red rot, acidity, powdering, brittleness and other signs that change how much handling and support an object can tolerate. Housing and physical support receive 14% because even a chemically stable room can damage leather through compression, abrasion, poor fit or unsupported weight. Mould and biological prevention receive 12% because high-humidity excursions can turn into visible damage rapidly.

Pollutant and light control receive 9%, monitoring and documentation 8%, and handling and emergency readiness 6%. These lower-weight pillars remain essential. A storage room should not be rated highly if it reaches the correct RH only intermittently, lacks reliable data, exposes leather to avoidable light, or has no plan for water and fire events.

Scores from 0 to 39 indicate high preservation risk, 40 to 59 basic control, 60 to 74 a developing archival standard, 75 to 89 a professional preservation environment and 90 to 100 exceptional storage control. Sub-scores should remain visible so an excellent environmental reading cannot conceal weak housing or absent monitoring.

Figure 4. RH stability, temperature, chemical condition and housing receive the largest combined weight because they most directly determine how slowly archival leather changes in storage.



Archival Leather Storage Challenges

One of the most persistent preservation problems is over-simplification. Leather that feels dry may tempt staff to apply oil or dressing, yet routine surface treatment can darken material, attract dust, alter chemistry or complicate future conservation. Storage should begin with condition assessment and environmental control rather than automatic treatment.

Acceptable averages can hide unstable building performance. A room may report 50% monthly RH while cycling between much drier daytime conditions and mould-risk levels overnight. Continuous monitoring is therefore essential, especially because cabinets, exterior walls and HVAC outlets can create local microclimates.

Poor housing creates another failure mode. Tight shelving compresses boards and raised decoration. Oversize boxes allow objects to slide. Weak containers deform under dense volumes. Abrasive surfaces remove powdering leather. The correct enclosure must therefore be both chemically suitable and mechanically appropriate to the object's size, weight and condition.

Finally, preservation programs can become too focused on environmental numbers and not enough on use. A stable object can be damaged by repeated retrieval, poor lifting technique, unsupported opening or insecure transport. Storage design should make the safe action the easy action by providing adequate aisle space, labelled boxes, supports and clear handling procedures.



90-Day Archival Leather Storage Benchmark Plan

Days 1 to 30 should establish the baseline. Record object type, leather form, current condition, evidence of red rot or mould, storage orientation, enclosure type, shelving pressure and handling frequency. Photograph representative surfaces and damage under consistent lighting. Begin continuous temperature and RH logging at more than one location so the apparent room condition can be compared with actual spatial variation.

Days 31 to 60 should focus on environmental behaviour. Calculate daily minimum, maximum and average temperature and RH. Identify 24-hour swings, time above 65% RH and time below 30% RH. Inspect boxes and shelves for deformation, dust and abrasion. Check whether objects are easy to retrieve without sliding adjacent material. Review light exposure during normal staff use rather than only after hours.

Days 61 to 90 should convert the findings into storage changes. Replace poor-fitting boxes, add supports, separate powdering leather, move high-risk material away from unstable walls or vents, recalibrate monitoring equipment and revise alarm thresholds where necessary. If severe chemical deterioration or specialist cold/anoxic storage is being considered, obtain conservation input before changing the environment.

At the end of 90 days, the collection should have a documented baseline, a measured environmental pattern and a prioritized action list. The value of the program is not a perfect score after one quarter. It is a repeatable method that can show whether conditions improve over subsequent years.



Metrics Archives and Collections Managers Should Track

Environmental metrics should begin with average, minimum and maximum RH and temperature, but they should extend to variability. Daily RH swing, maximum 24-hour change, hours above 65% RH, hours below 30% RH, alarm count and outage duration provide much more preservation information than a monthly average alone.

Object-condition metrics should track powdering, cracking, stiffness, mould, distortion, surface loss and new transfer onto housing. For leather-bound volumes, spine flexibility and board attachment can be monitored. For three-dimensional leather, shape stability and stress at seams or folds may be more useful. Condition change should be recorded at defined intervals so deterioration is visible as a trend rather than an anecdotal impression.

Housing metrics should include box fit, support quality, enclosure deformation, abrasion, label reliability and replacement rate. Operational metrics can add retrieval frequency, handling incidents, pest activity, water events, monitoring gaps and the number of items requiring specialist conservation. These fields connect storage quality with the real work of running an archive.

A strong scorecard combines room data with object outcomes. If environmental control improves but powdering or deformation continues, housing, handling or chemical condition may be responsible. Conversely, repeated threshold crossings remain a risk even when visible damage has not yet appeared.



How Leather Storage Quality Changes by Collection Type

Leather-bound books require support that protects both the leather cover and the mechanical structure of the binding. Small stable books may stand upright with supportive neighbours or bookends, while oversize or weakened volumes may require flat storage. Tight packing should be avoided because retrieval can abrade covers and place leverage on fragile joints.

Flat leather documents, portfolios and fragments need different treatment. Folding or rolling can concentrate stress along existing weaknesses, while large flat pieces may require folders, boards or custom supports that distribute weight. If material is already distorted, flattening should not be attempted casually; specialist assessment may be needed to avoid cracking or surface loss.

Three-dimensional leather such as cases, saddlery or equipment benefits from shaped support. Empty forms can collapse under their own weight, and straps can develop permanent creases when stored under tension. Padded inert supports can help retain shape while keeping pressure away from weakened seams and decorative areas.

Red-rotted leather is the highest-handling-risk category. Isolation reduces powder transfer, while rigid support allows staff to move the object by the support rather than the leather. Skin and parchment composites may be more dimensionally reactive than heavily tanned leather and therefore place even greater emphasis on RH stability. One room can serve many leather types, but the housing system must respond to physical form and degradation state.



The Archival Leather Storage Report FAQ

What is the best humidity for archival leather?

 A strong general target is around 45–55% RH for many leather and leather-bound collections. Some museum environments operate within a broader 40–60% band, but stability is critical. A steady 50% environment is generally more desirable than a room that repeatedly swings across a much wider range.

What humidity causes mould on leather?

Mould risk rises substantially as RH moves above about 65%, although sensitive surfaces may support growth under some conditions closer to 60%. The danger increases with time. Approximate mould models show visible growth can take around 100 days at 70% RH, about 10 days at 80% RH and roughly 2 days at 90–100% RH under favourable conditions.

Can leather become too dry?

 Yes. Conservation guidance treats levels around or below 30% RH as a dryness concern for susceptible leather. Low moisture can reduce flexibility and make brittle or degraded material more vulnerable during handling. Very dry heated winter interiors can fall far below this threshold without humidification.

What temperature is best for leather archives?

General recommendations commonly center on about 18–22°C, with some rawhide and semi-tanned materials kept below roughly 25°C. Cooler temperatures can slow chemical deterioration, but the room must also maintain safe RH and avoid condensation.

Does cooler storage slow leather deterioration?

Moderate cooling can provide a substantial benefit. A common conservation rule of thumb uses a 5°C decrease, such as from 23°C to 18°C, as an example associated with approximately half the deterioration rate for some chemical processes. The relationship is not identical for every reaction or leather type, so it should be treated as a planning guide rather than an exact prediction.

What is red rot?

 Red rot is a severe deterioration condition often associated with historic vegetable-tanned leather. The surface may become reddish-brown, powdery and weak. A pH below about 4.0 is an important acidity warning, while very low shrinkage temperature can indicate serious collagen damage. Red-rotted leather should be supported and handled as little as practical.

Should archival leather be stored in acid-free boxes?

Suitable archival boxes are often valuable because they protect from abrasion, dust, light and handling while providing mechanical support. The box should be correctly sized and made from tested archival materials. Acid-free chemistry alone is not enough if the container is weak, rough or improperly fitted.

How often should temperature and humidity be monitored?

Continuous logging is preferable, with federal archival standards calling for readings at least hourly in controlled facilities. Routine review should then identify daily swings, seasonal trends and the duration of excursions outside the target range.

Should leather be treated with oils before storage?

Routine oiling or dressing should not be assumed to be beneficial. Treatments can alter colour, surface feel and future conservation options. Storage improvements should begin with environmental stabilization, supportive housing and specialist assessment when active treatment is needed.

Final Takeaway

Archival leather preservation is governed by balance rather than extremes. A practical general environment centers around 45–55% RH and approximately 18–22°C. Below about 30% RH, vulnerable leather can become increasingly dry and difficult to handle. Above roughly 65% RH, mould risk rises, and the available response time contracts rapidly as humidity climbs.

The time dimension is especially important. Under favourable conditions, visible mould may take around 100 days at 70% RH, roughly 10 days at 80% RH and only about 2 days at 90–100% RH. Environmental monitoring therefore needs to record duration, not merely peak values. Hourly logging and multi-year trend analysis reveal risks that a single wall display cannot show.

Chemical condition changes the preservation strategy further. Leather below about pH 4.0 may be severely acidic, while shrinkage temperatures near 35°C can signal major collagen deterioration. At that stage, minimal handling, individual support and specialist conservation advice become central. Housing should use archival-quality materials with controlled pH, very low sulfur and adequate structural strength, but it must also fit the object correctly.

Premium archival leather storage is stable storage. Moderate humidity, controlled temperature, low fluctuation, supportive housing, limited light and pollutants, continuous monitoring and careful handling work together to slow change. The goal is not to make leather look newly treated, but to keep it changing as slowly and safely as possible over generations.
