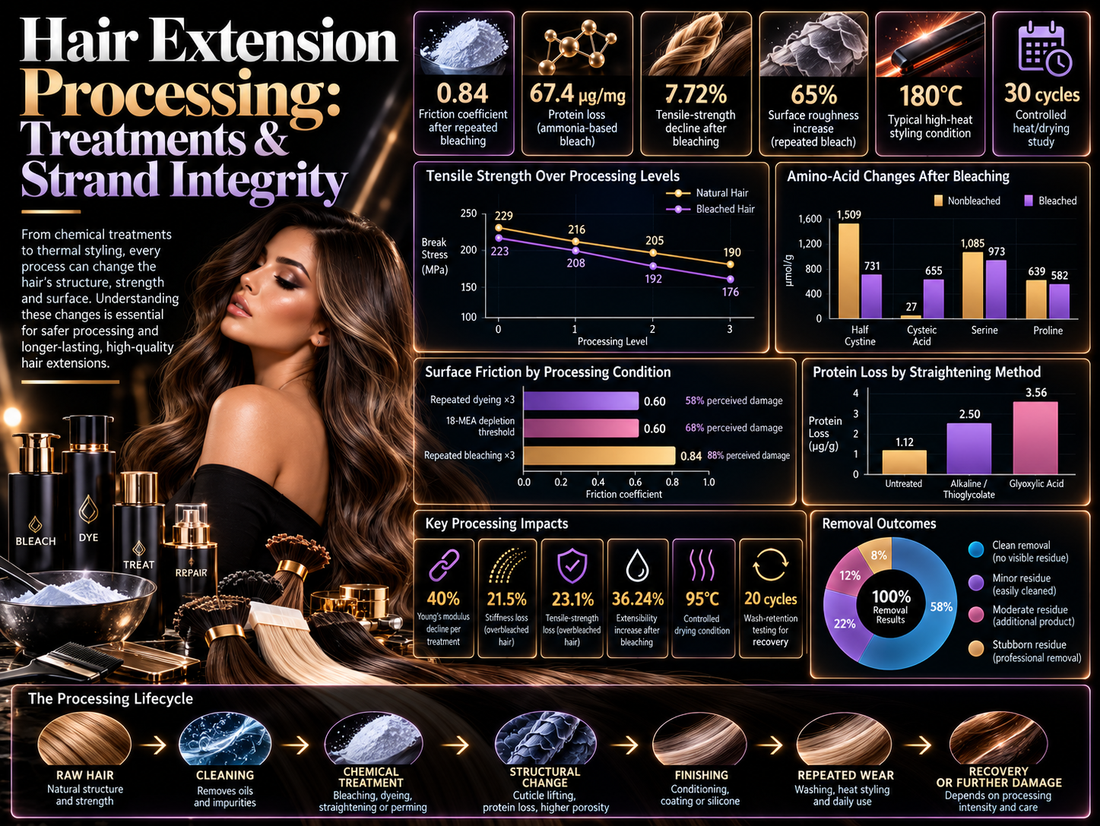

Hair Extension Processing: Treatments & Strand Integrity

Hair extensions can look uniform and glossy even when the fibers beneath the finish have very different histories. A dark bundle may need limited color correction, while an icy blonde may have been swollen, oxidized, rinsed, toned, conditioned and heat-finished several times before sale. Both can feel soft in the package. The more useful quality question is how much strand integrity remains after the desired color, texture and finish are achieved.

Processing changes more than appearance. Bleaching can alter sulfur chemistry, cuticle condition and surface roughness; dyeing can change friction, moisture response and protein behavior; permanent waving and straightening deliberately reorganize the chemistry that fixes fiber shape. Heat adds another layer because temperature, contact time, wetness and repeated passes can compound earlier chemical stress. Conditioning and protein treatments may improve combability or stiffness, but improved performance does not mean every original molecular feature has returned to its virgin state.

A useful extension-quality system therefore separates five questions. What was done to the fiber? How strongly did the treatment alter the cuticle and cortex? What mechanical reserve remains? How does the surface behave after the factory finish is washed away? And does the finished extension recover to a manageable state through washing, detangling, styling and storage? These questions turn processing from a vague history label into a measurable strand-integrity framework.

Processing Changes More Than Hair Color

Color is the most visible sign of processing, but it is only one result of a larger chemical and mechanical sequence. Hair is a keratin fiber protected by overlapping cuticle cells and supported by a load-bearing cortex. When factories transform dark donor hair into pale or highly uniform shades, the chemistry that changes pigment can also affect proteins, lipids, roughness and strand-to-strand slip.

Cosmetic success and structural preservation do not always move together. A strand can reach the target shade while losing stiffness, and a smoothing finish can reduce drag after the underlying cortex has weakened. Silicone-rich finishing can create exceptional initial slip even when the hair becomes harder to manage after several washes. Processing quality is therefore not the absence of treatment; it is the degree to which the desired transformation is achieved while unnecessary material loss and cumulative damage are controlled.



Executive Strand-Integrity Benchmarks

The strongest statistics in the processing dataset show why a multi-variable benchmark is necessary. In one friction and sensory comparison, repeated dyeing produced a friction coefficient of 0.60, while repeated bleaching reached 0.84. Damage perception moved in the same direction: 58% of respondents first perceived damage after repeated dyeing, compared with 88% under the repeated-bleach condition. A separate 18-MEA depletion condition again reached a friction coefficient near 0.60, with 68% recognizing damage, linking surface chemistry to tactile response.

Protein and tensile measurements reveal changes that cannot be seen from shine alone. One bleach-formulation comparison measured 67.4 µg/mg of protein loss with a 5% ammonium-hydroxide system and 40.4 µg/mg with a 2% AMPD system. Another study measured tensile strength at 0.958 N in virgin hair and 0.884 N after bleaching, a reported decline of 7.72%. At the same time, extensibility increased from 22.79% to 31.05%, a 36.24% rise. The combination suggests a fiber that stretches differently while requiring less force to break.

Severe treatment makes cumulative effects clearer. Eight bleaching cycles were associated with 21.5% stiffness loss and 23.1% tensile-strength loss in an overbleached-hair model. Nanoscale testing reported surface roughness increases of up to 65% after repeated bleach exposure and Young's-modulus decreases of up to 40% per treatment under that specific protocol. These values are not universal thresholds, because methods and starting hair vary, but they identify the dimensions a serious quality system should track.





Why Processing Damage Requires a System-Based Benchmark

The term processed hair covers a wide range of histories, from deposit-only color to repeated bleaching, hydroxide straightening, thioglycolate reshaping, glyoxylic smoothing and high-temperature styling. Treating all of these as one processed-versus-unprocessed category removes the information needed to explain durability.

The system also has to separate surface recovery from structural recovery. Conditioners, silicones and polymers can lower combing resistance and improve gloss quickly. Those effects are valuable because customers interact with the surface first, but easier combing does not automatically mean that lost protein, oxidized sulfur chemistry or reduced cortex strength has been restored. A product can therefore score well for post-wash manageability while still carrying less mechanical reserve than virgin hair.



The Anatomy of Strand Integrity Before Processing

A processing benchmark needs a physical baseline. The cuticle is formed from overlapping cells approximately 0.5 µm thick and roughly 45–60 µm long, with a visible scale interval around 6–7 µm. The epicuticle is far thinner, approximately 10–14 nm, while the A-layer is commonly described in a range near 50–100 nm. Beneath it, exocuticle and endocuticle regions may extend roughly 50–300 nm depending on location and measurement method.

These dimensions explain why surface condition matters. A microscopic cuticle defect can still create an edge that catches neighboring fibers, while cortex cells provide much of the strand's internal mechanical framework. Damage that progresses from the cuticle toward the cortex therefore shifts the problem from handling quality toward actual strength loss.

The intact fiber should be understood as layered rather than uniform. Processing chemistry first encounters the outer surface, but alkaline swelling, oxidants, reducers and heat can change how deeper structures behave. This is why microscopy, friction, protein loss and tensile testing answer different questions: they observe different levels of the same strand.





Baseline Strand Diameter and Processing Response

Human hair diameter varies substantially, and that variation affects how a strand responds to processing and how laboratory results should be normalized. One multi-population summary reported major-axis measurements near 94.28 µm for Asian hair, 81.94 µm for Caucasian hair and 98.23 µm for African hair. Minor-axis measurements in the same comparison were approximately 76.79 µm, 56.74 µm and 58.52 µm respectively. Other studies report different averages and ranges because sampling, sectioning and measurement methods differ.

Diameter should not become a quality ranking. A thicker fiber is not automatically healthier and a finer one is not automatically softer. Geometry affects load-bearing material, chemical penetration and bulk handling, while curvature and cross-sectional asymmetry influence how readily fibers interlock during brushing and wear.

For processing control, a factory should avoid assuming that one bleach time, relaxer exposure or heat protocol produces equivalent effects on every incoming batch. Starting morphology belongs beside the test result, especially when extension hair is mixed across donors or origins.

Figure 1. Representative major- and minor-axis measurements show that starting geometry differs by population and study method, so processing response should be interpreted against the tested fiber rather than a universal diameter.



Bleaching and Oxidative Strand Damage

Bleaching is one of the most consequential processing steps because it intentionally uses alkaline conditions and oxidation to remove or lighten pigment. Typical bleaching systems operate around pH 8–10, encouraging swelling that makes the fiber more accessible to peroxide chemistry. The objective is color change, but the same environment can alter surface lipids, oxidize sulfur-containing structures and increase cuticle vulnerability. The brighter the target and the more resistant the starting pigment, the more important treatment time, concentration and repeat exposure become.

Mechanical testing shows that color transformation can be accompanied by measurable strength changes. In one direct comparison, virgin hair measured 0.958 N in tensile strength and bleached hair 0.884 N, a reported decrease of 7.72%. Extensibility moved the opposite way, from 22.79% to 31.05%, an increase of 36.24%. A more extensible strand is not automatically a stronger strand; the result can indicate that the fiber deforms more before failure while requiring less force to reach the breaking point.

At the surface, repeated bleach exposure can create even stronger differences. A nanoscale comparison reported up to a 65% increase in roughness after a second 10-minute exposure and decreases of up to 40% in Young's modulus per treatment under the reported conditions. In a separate sensory-friction dataset, three bleach treatments produced a coefficient of 0.84 and 88% perceived the sample as damaged. The relationship between surface damage and tactile response is especially important for extensions, where long fibers repeatedly slide across one another.

These findings do not mean every bleached extension will fail. Controlled bleaching can still produce highly wearable hair. The benchmark question is how much mechanical and surface reserve remains after the target shade is reached, and whether that reserve is sufficient for later washing, heat styling and mechanical wear.

Figure 2. In the selected tensile comparison, bleaching reduced measured strength from 0.958 N to 0.884 N, while extensibility increased, demonstrating that strength and stretch response can move in different directions.



Bleaching Chemistry and Protein Loss

The chemistry used to create lift can materially change the amount of protein lost from the fiber. In one comparison, a bleaching system containing 5% ammonium hydroxide produced protein loss of 67.4 µg/mg hair. A system using 2% AMPD measured 40.4 µg/mg under the reported protocol. The absolute difference was 27.0 µg/mg, which corresponds to roughly a 40% reduction relative to the ammonium-hydroxide value.

For manufacturing, the implication is straightforward: chemistry selection should be tracked as a quality variable. Protein loss, friction, roughness and break stress can be compared across candidate formulations before scale production. The preferred route is the one that meets color and consistency targets while preserving the greatest practical structural reserve.



Amino-Acid Changes After Bleaching

Bleaching affects the chemistry of keratin as well as the visible pigment system. Amino-acid measurements provide a deeper view of that transformation. In one dataset, half cystine fell from 1509 µmol/g in nonbleached hair to 731 µmol/g after bleaching. Cysteic acid moved in the opposite direction, rising from 27 µmol/g to 655 µmol/g. That pattern is consistent with strong oxidation of sulfur-containing structures during the bleach process.

Several other amino-acid measurements also declined. Serine moved from 1085 to 973 µmol/g, proline from 639 to 582 µmol/g, methionine from 50 to 38 µmol/g and tyrosine from 183 to 146 µmol/g. The exact values are method-specific, but their collective importance is that processing alters the material composition of the strand. A glossy finish cannot reverse the fact that the keratin environment has changed.

For extensions, these chemical changes help explain why very light shades may need more conditioning support than darker products made from similar starting hair. A polished surface can mask a chemically transformed fiber with less tolerance for repeated heat, aggressive brushing or long intervals between conditioning. Amino-acid data are not consumer-facing specifications, but they help explain why processing history belongs in premium quality control.





Surface Roughness, Cuticle Damage and Friction

Surface roughness and friction connect microscopic damage with the way a customer experiences an extension. A raised cuticle edge does not need to be visually obvious to create drag. In a dense bundle, strands cross and separate thousands of times during brushing, finger combing and ordinary movement. Increased friction can therefore turn small surface irregularities into tangling, static and a dry tactile impression.

The strongest direct friction comparison in the dataset places repeated dyeing at 0.60 and repeated bleaching at 0.84. Damage perception rises from 58% to 88% across those conditions. A separate 18-MEA depletion condition again produced a coefficient near 0.60, with 68% recognizing damage. The repetition of that level is useful as a warning signal within the evidence set, but it should not be treated as a universal threshold across every instrument, fiber type or environmental condition.

Gloss and friction should not be treated as the same property. Hair can reflect light while producing greater combing resistance, and a factory finish can temporarily lower drag over a highly processed cuticle. Post-wash friction and detangling therefore reveal more about durable handling than unboxing feel alone.

Figure 3. Friction rises alongside stronger perceived damage in the selected processing conditions, connecting measurable surface behavior to tactile quality.



Dyeing Without Full Bleaching

Not all color processing carries the same structural burden as aggressive lightening. Oxidative dye systems penetrate and chemically develop color, while coating-oriented systems can place more of the color effect at or near the surface. A comparative hair-dye-shampoo dataset illustrates why both color performance and hair-condition metrics should be measured at the same time.

After repeated applications, both systems produced measurable changes in color, but the associated hair-health indicators differed. The study tracked tensile behavior, frictional resistance, elasticity, gloss, moisture, protein content, surface roughness and fluorescence. Protein content changed by -17.38% in the oxidation-based condition and -8.75% in the coating-based condition, while surface-roughness change was -8.91 and -19.91 in the respective reported units. Moisture-content change reached 10.84% for the oxidation-based system and 5.63% for the coating-based system.

These metrics should not be compressed into a claim that one color mechanism is always superior. They show that color delivery involves tradeoffs among deposition, protein change, roughness, moisture response and retention. Extension quality control should compare the complete pattern against the intended shade and wear profile.





Chemical Straightening and Strand Integrity

Chemical straightening permanently changes the shape memory of the hair fiber, so structural chemistry is part of the desired outcome rather than an accidental side effect. Traditional hydroxide systems can operate at very high alkalinity. Lye relaxers are commonly described around pH 12–13, while no-lye systems may be near pH 11. Broader hydroxide-processing discussions extend from about pH 9 to 14, with example active concentrations around 1.5–3.0% and exposure windows such as 15 minutes.

Hydroxide straightening converts part of the original cystine structure through lanthionization. A representative description places roughly one-third of cystine as replaced, leaving about two-thirds of the original measurement. The process delivers permanent straightening, but the same chemistry can reduce the structural reserve if concentration, application or neutralization is poorly controlled.

Protein-loss comparisons reinforce the point. Untreated hair measured about 1.12 µg/g in one dataset, a traditional alkaline or thioglycolate condition approximately 2.5 µg/g, and a glyoxylic-acid condition 3.56 µg/g. These values do not rank every product built on those chemistries, but they show that shape-control systems should be judged by measurable strand outcomes as well as the final straightness or shine.

Figure 4. Protein-loss measurements rise across the untreated, traditional straightening and glyoxylic-acid conditions in this comparison, showing why permanent shape change should be evaluated beyond the final straightness.



Permanent Waving and Disulfide-Bond Restructuring

Permanent waving uses the same principle in the opposite visual direction: the fiber is chemically softened, reshaped around a form and then reoxidized so the new geometry is retained. A controlled experimental protocol used 1 M thioglycolic acid at pH 9 for 20 minutes at 20°C, followed by rinsing and reoxidation with 2.3% hydrogen peroxide at pH 7 for 20 minutes. Approximately 200 specimens were included in the broader experimental set.

In extensions, permanent waving can create a consistent curl or wave across many donor fibers even though those strands began with different geometries and histories. Post-process tensile testing, wet combing and repeated wash recovery are therefore more informative than visual curl consistency alone.



Thermal Processing and Heat Accumulation

Heat is often discussed as one temperature number, but thermal burden is created by temperature, exposure time, distance, moisture state and repetition. In a controlled hair-dryer experiment, one condition used approximately 47°C at a 15 cm distance for 60 seconds, another used 61°C at 10 cm for 30 seconds, and a high-intensity condition used 95°C at 5 cm for 15 seconds. The protocol repeated washing and drying through 30 cycles, allowing cumulative effects to emerge rather than judging one pass.

Iron-based styling can create far higher contact temperatures. Comparative heat-damage protocols include curling-iron exposure at 180°C with 15-second heating periods and treatment levels extending through 20, 40, 60 and 80 cycles. Other straightening-iron experiments have investigated temperatures above 200°C with approximately 12 seconds of contact followed by cooling. A strand may withstand one pass at these temperatures without immediate breakage, but survival is not the same as retained softness or long-term strength.

Wetness also matters because water changes keratin mechanics and drying concentrates heat as moisture leaves the shaft. A dryer held at distance, an iron clamped directly to the fiber and repeated heat on damp hair can therefore produce different outcomes at similar nominal temperatures.



Repeated Processing and Cumulative Damage

The most realistic extension history is often a process stack rather than a single treatment. Hair may be cleaned, decolorized, recolored, neutralized, conditioned, heat-dried and then coated before assembly. Later, the customer may wash, straighten, curl and recolor it again. Each stage starts from the condition left by the previous one.

An overbleaching model using eight bleach cycles illustrates how cumulative treatment can move the strand into a substantially different mechanical state. The reported stiffness loss was 21.5%, while tensile-strength loss reached 23.1% compared with virgin Asian hair. The values are specific to that model, but they show why repeat-treatment count should be preserved in manufacturing records whenever possible.

Cumulative damage is especially relevant to long-extension ends. Collected hair may already contain years of weathering before factory processing, and the oldest sections then receive chemical treatment, clothing friction, brushing and heat. A bundle can remain attractive near the attachment while the lower third loses flexibility and tangles more readily.

The objective is not to eliminate processing; the category depends on color and texture transformation. It is to minimize unnecessary repetitions, choose the least damaging route that meets the target and verify the strand after the complete sequence rather than after one intermediate step.



Mechanical Integrity: Wet Versus Dry Hair

Mechanical testing becomes more informative when wet and dry states are separated. Water changes the interaction between keratin structures, so Young's modulus, break extension and break stress can shift substantially between conditions. A dataset comparing natural and bleached fibers across escalating thermal-treatment levels shows a clear downward trend in dry break stress.

Natural or chemically untreated samples measured approximately 229 MPa at level 0, then 216 MPa, 205 MPa and 190 MPa across levels 1 through 3. Bleached samples moved from about 223 MPa to 208 MPa, 192 MPa and 176 MPa. The parallel decline demonstrates how cumulative treatment can reduce the stress a fiber withstands before breaking even when the hair remains intact enough to handle normally.

Wet-state measurements add another dimension because consumers wash and condition extensions repeatedly. A product that looks strong when dry may become more vulnerable during detangling if wet break stress or stiffness is low. This is why aggressive brushing immediately after washing can expose weaknesses not obvious during dry styling.

Quality control should avoid one-number mechanical claims. Each result should retain the test state, treatment history and measured property because dry modulus, wet break extension and tensile strength describe different aspects of the same fiber.

Figure 5. Dry break stress declines across escalating treatment levels in both natural and bleached groups, illustrating cumulative mechanical loss rather than a one-step failure threshold.



Protein Treatments and Mechanical Recovery

Repair and conditioning technologies are important because processed hair does not need to remain in its damaged state. Protein-oriented treatments can alter surface behavior and measurable mechanical properties, sometimes producing large improvements. The key is to describe those improvements accurately as treatment response rather than automatic restoration of virgin chemistry.

One recombinant keratin K31 comparison measured Young's modulus at 10,486 N/mm² in untreated hair, 6,595 N/mm² after chemical damage and 12,256 N/mm² after the damaged hair received K31 treatment. Relative to the damaged state, the measured modulus increased dramatically. The result demonstrates that a treatment can strengthen or stiffen a compromised fiber enough to exceed the untreated measurement under the specific test conditions.

A separate overbleached-hair model reported a 21.5% stiffness loss and 23.1% tensile-strength loss before repair testing. Depending on treatment conditions, Young's-modulus recovery reached 24.17% and tensile-strength recovery reached as high as 19.85%. Wash-retention work extended to 20 wash cycles, which is important because a repair effect that disappears after one shampoo has a different commercial value from one that survives repeated care.

Extension claims should distinguish immediate conditioning, measurable strengthening and durable post-wash recovery. These outcomes are related but not identical: a product may improve combability without restoring tensile strength, while a treatment that improves modulus may still need surface conditioning to control friction.

Figure 6. The selected K31 treatment produced a large increase in measured Young's modulus after chemical damage, demonstrating that repair treatments can materially change mechanical response under controlled conditions.



Surface Finishing, Silicone and Temporary Slip

Factory finishing is one reason heavily processed hair can feel exceptionally smooth at first touch. Silicone systems, conditioning agents and deposited polymers can fill irregularities, lower surface friction and create a uniform reflective film. These effects are not inherently negative. A durable finish that protects the strand and remains compatible with normal care can be part of a high-performing extension system.

A production benchmark should test freshly finished and washed hair as separate states. Friction, wet and dry combing, gloss and end feel can be recorded before washing and after repeated cycles; the gap between those states shows how dependent the product is on its original surface treatment.



Moisture, Porosity and the Meaning of Hydrated

Moisture numbers can be misinterpreted when they are treated as a direct health score. Damaged hair may become more hydrophilic as surface lipids are lost and the cuticle becomes more permeable. In one comparison, damaged dyed hair contained more than approximately 0.42% additional moisture than healthy hair. That does not mean the damaged sample had superior condition.

Higher water uptake can accompany increased porosity, swelling and roughness. During washing, a porous extension may absorb water quickly and feel heavy, then require more time to dry. Repeated swelling and drying can also amplify mechanical stress at already weakened cuticle edges. The customer may experience this as frizz, prolonged detangling or ends that feel rough despite high measured moisture.

Moisture should be interpreted with friction, combability and recovery. Higher water uptake paired with low drag may be acceptable, while higher uptake accompanied by roughness and slow post-wash recovery points more strongly to compromised porosity.



Hair Extension Construction Amplifies Processing Effects

Laboratory studies often test isolated fibers or small tresses, but consumers wear constructed systems. Clip-ins, tapes, keratin bonds, machine wefts and wigs place processed hair into architectures that change how often strands contact one another. A minor increase in friction can become more noticeable when hundreds of grams of long hair move across shoulders and clothing.

Construction also changes where mechanical stress is concentrated. A tape or bond anchors a relatively small group of strands, while a weft distributes fibers along a sewn or bonded base. Dense clip-in pieces create high local fiber counts. If processed hair has lower break stress, the attachment system may expose that weakness differently depending on how tension is transferred during brushing and styling.

Length magnifies processing effects because every additional centimeter creates more opportunity for crossing, abrasion and end weathering. The lower third is therefore the most revealing area for combined chemical history, clothing friction and heat exposure, and it should be assessed separately from the attachment zone.



Building the Strand Integrity Benchmark Index

A practical benchmark can convert the evidence into eight weighted pillars. Mechanical strength retention receives 18%, the largest individual weight, because an extension must remain physically intact through brushing, washing and styling. Cuticle and surface integrity receive 17%, recognizing that friction, roughness and lifted scales strongly influence tangling and consumer feel. Chemical and protein preservation receive 15% because oxidation, reduction and protein loss describe changes that surface finishing can temporarily hide.

Friction and combability receive 13%, while elasticity and break behavior receive 11%. These categories keep tactile handling separate from tensile performance. Thermal-damage control receives 10%, acknowledging that factory drying and consumer styling add cumulative exposure. Wash and recovery performance receive 9%, ensuring that first-touch quality is tested beyond the package. Processing disclosure and traceability receive the final 7% because a product cannot be interpreted confidently if shade history, fiber type, weight and care guidance are unknown.

Keep the sub-scores visible so strong slip cannot hide weak tensile retention. Suggested bands are 0-39 poorly verified, 40-59 basic, 60-74 developing, 75-89 professional-grade and 90-100 exceptional integrity.

Figure 7. Mechanical retention, surface integrity and chemical preservation carry the largest combined weighting because first-touch smoothness should not conceal structural loss.



Manufacturing and Quality-Control Challenges

The largest quality-control problem is incomplete history. Extension brands frequently disclose fiber type, length and shade but provide little information about how many times the hair was lightened, whether it was chemically reshaped, what coating was applied or how the treatment differed between dark and very light shades. Without that history, a customer and even a retailer may be comparing products that have very different structural reserves.

Batch blending adds another challenge. Collected hair can vary in diameter, curvature, weathering and previous cosmetic history. Manufacturing improves visual uniformity by sorting and coloring, but the finished batch may still contain fibers that respond differently to the same chemical process. Overprocessing the most vulnerable fibers to achieve color uniformity can lower the average integrity of the bundle.

Measurement methods also vary. Wet and dry tensile tests are not interchangeable. Protein-loss methods can have different sensitivities. Surface roughness measured by microscopy is not the same as tactile friction measured during sliding contact. A robust factory dashboard should therefore keep the method beside the number rather than presenting all results as though they share one scale.

Laboratory success also has to survive real wear. Installation, sleep, sweat, clothing friction and repeated care can reveal problems that controlled tress testing misses, so product-level validation should combine laboratory measurements with repeat-wear observations.



The 90-Day Processing Integrity Test

Days 1 to 30 should establish the baseline. Record fiber type, stated origin, Remy or non-Remy claim, shade, length, weight, piece count or weft structure, known bleaching history, color system, any chemical reshaping, heat guidance and factory finishing. Photograph the mid-lengths and ends under consistent light. Measure dry combing, wet combing and tactile drag, and retain standardized tresses for mechanical or microscopy testing where equipment is available.

Days 31 to 60 should introduce controlled stress. Wash equal quantities using the same water temperature and product dose. Use a fixed conditioner dwell time, controlled drying routine and a defined heat temperature with a recorded pass count. Repeat brushing and storage cycles. Track detangling time, static, shedding, breakage, visible roughness, end feel, gloss and the amount of conditioning needed to return the hair to baseline handling.

Days 61 to 90 should move from tress testing to the actual extension format. Install, wear, remove and store the product according to its intended use. Record nape matting, attachment-zone stiffness, mid-length drag, end dryness, post-wash softness recovery and any difference between sections of the product. Long or very dense systems should be compared with products of similar construction so that fiber condition is not confused with the maintenance burden created by mass and length.

The final score should describe both survival and recovery. Hair that remains attachable but needs prolonged detangling is not equivalent to hair that quickly returns to a smooth state, and persistent rough ends should reduce lifecycle performance even when the attachment hardware remains sound.



Metrics Manufacturers and Brands Should Track

Mechanical metrics should include Young's modulus, tensile strength, break stress and break extension in clearly defined wet or dry states. These measurements describe stiffness, resistance to failure and deformation behavior. When possible, results should be recorded before treatment, after the factory processing sequence and after selected lifecycle cycles so that loss and recovery can be quantified rather than inferred.

Chemical metrics should include processing pH, active concentration, exposure time, number of bleach or dye cycles and protein-loss indicators. Amino-acid analysis is too specialized for routine production in many factories, but periodic laboratory work can reveal whether a new lightening process is changing sulfur chemistry more aggressively than the existing system.

Surface metrics should include friction, dry and wet combing, cuticle appearance, roughness, gloss and moisture response. These are closest to the customer's immediate experience. Lifecycle metrics should then add wash cycles, heat cycles, detangling time, matting, end feel, shedding, breakage, softness recovery and usable lifespan.

Consumer data complete the loop. Returns for tangling, complaints about dry ends, repeat purchase and review language around roughness or matting can expose a processing problem that laboratory sampling missed. Linking those signals to shade, batch and manufacturing date makes the feedback actionable.



How Processing Integrity Changes Across the Supply Chain

Raw-hair collectors and suppliers influence the starting condition through sorting, contamination control, alignment and storage. Their strongest contribution is preserving the fiber before aggressive manufacturing begins. A processor then controls cleaning, decolorization, dyeing, neutralization, smoothing and coating. This stage can create most of the visible transformation and much of the structural variation that later appears as differences in durability.

Extension manufacturers add another layer by blending hair, setting density, building wefts or attachments and applying heat to create the final commercial texture. Brands translate those decisions into claims, care instructions, quality-control limits and return policies. A premium claim is more credible when the brand knows the processing route of each shade family rather than treating all colors as equivalent.

Stylists and consumers complete the lifecycle. Installation tension, washing frequency, tool temperature, detangling and storage can either preserve or consume the remaining structural reserve. The benchmark should separate manufacturing quality from later care while recognizing that both determine the final outcome.



Hair Extension Processing FAQ

Does bleaching always weaken extension hair?

Bleaching generally increases chemical burden because pigment removal requires oxidation and alkaline swelling. The degree of change varies with the formulation, concentration, treatment count, exposure time and starting fiber. A controlled lightening process can leave a high-quality result, but very pale shades deserve more lifecycle testing because they often require greater processing intensity.

Why can heavily processed hair still feel very soft when new?

Factory conditioners, silicones and surface polymers can reduce friction and fill irregularities immediately after production. That soft first touch is useful but does not reveal the complete structural state. Post-wash behavior is more informative because some of the original finish is removed and the cuticle condition becomes more influential.

What is the strongest sign of processing damage?

No single measurement is sufficient. High friction can indicate a rough surface, tensile loss can indicate lower mechanical reserve, and protein or amino-acid change can show chemical transformation. The strongest assessment combines surface behavior, strength, chemical history and recovery after repeated washing and heat.

Is darker extension hair always less processed?

Not necessarily, because the original donor color and manufacturing route may be unknown. However, a dark shade often requires less pigment removal than a very light blonde when both start from dark hair. The processing record is more reliable than the final color alone.

Does protein treatment restore virgin hair?

A protein treatment can improve stiffness, tensile behavior, surface condition or combability, and some controlled experiments show large mechanical gains. That improvement should be described as recovery or strengthening under the test conditions, not as proof that every oxidized bond or lost component has returned to its virgin state.

Does a higher moisture reading mean healthier hair?

No. Damaged hair can become more hydrophilic and porous, increasing water uptake while also becoming rougher. Moisture should be interpreted with friction, combability, cuticle condition and drying behavior rather than used as a standalone health score.

Is 180°C safe for hair extensions?

A temperature such as 180°C is better understood as a styling condition or product ceiling than a guarantee of long-term preservation. Repeated passes, direct contact, prior bleaching and styling while damp can all increase cumulative damage. Lower temperatures and fewer passes generally preserve more reserve.

What should buyers look for before choosing processed extensions?

Look for clear fiber type, Remy claims where relevant, shade and lift information, heat guidance, weight, care instructions and realistic post-wash reviews. Comments about tangling, end quality, matting and recovery after several wears are more informative than unboxing softness alone.

Final Takeaway

Hair-extension processing is best understood as a controlled trade between transformation and structural reserve. The selected data show friction at 0.60 after repeated dyeing and 0.84 after repeated bleaching, alongside damage perception rising from 58% to 88%. Protein-loss measurements range from 40.4 µg/mg to 67.4 µg/mg in one bleach-chemistry comparison, illustrating how formulation can change the amount of material lost even when both processes are designed to lighten hair.

At the chemical level, half cystine falls from 1509 to 731 µmol/g while cysteic acid rises from 27 to 655 µmol/g. Mechanically, tensile strength declines from 0.958 N to 0.884 N as extensibility rises from 22.79% to 31.05%. Under severe cumulative treatment, stiffness loss reaches 21.5% and tensile-strength loss 23.1%; nanoscale testing reports roughness increases up to 65% and Young's-modulus declines up to 40% per treatment under a specific repeated-bleach protocol.

Heat adds another cumulative layer. Controlled dryer studies extend to 95°C and 30 cycles, while iron-based experiments use around 180°C and can extend to 80 cycles or investigate conditions above 200°C. These numbers show why one successful styling pass is not enough to establish durability. A processing system should be judged by how the strand behaves after many realistic exposures.

Premium processing is not processing that leaves hair looking untouched. It is processing that achieves the desired shade, shape and finish while preserving enough mechanical strength, cuticle integrity and recovery capacity for the extension to remain manageable through repeated washing, brushing, styling and storage. That is the difference between a surface that looks premium on day one and a strand system engineered to stay usable over time.
