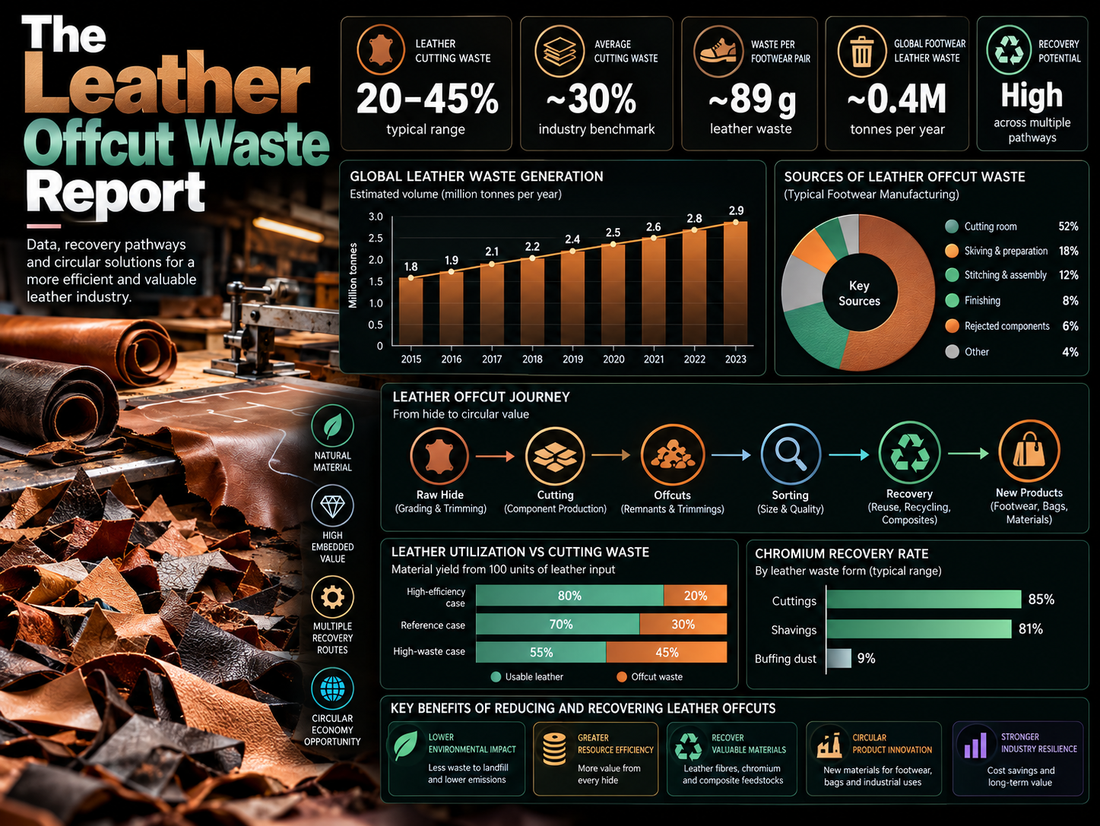

The Leather Offcut Waste Report

Leather offcuts are highly visible in footwear and leather-goods manufacturing, but cutting-room scraps are only one part of the waste system. Streams include finished-hide remnants, edge strips, defect-avoidance pieces, rejected components, wet-blue cuttings, chrome-tanned shavings, buffing dust and trimming fragments. Each has a different chemistry, value and recovery route. Manufacturing guidance places leather cutting waste in a broad 20–45% range, with roughly 30% often used as a working average. At the high end, almost half of the purchased leather area can fail to become a saleable component.

The reason is structural. Leather is a biological material rather than a uniform industrial sheet. A hide contains edges, natural contours, scars, holes, thickness variation and quality zones. Pattern pieces also differ in size, curvature, grain-direction requirements and visibility. A factory cutting one large panel from premium leather faces a different nesting problem from a factory cutting dozens of small shoe components. The same nominal square footage can therefore produce very different usable output. Cutting technology matters, but so do product architecture, order sequence, hide grading, operator rules and the ability to redirect small remnants into secondary products.

This report follows leather offcuts from cutting through waste measurement, factory composition, tannery residuals, finished-leather value, geographic concentration, chromium recovery, composite reuse and thermal valorization. Its purpose is to separate unavoidable biological irregularity from avoidable process loss. A useful benchmark should show how much leather was purchased, how much became product, how much remained as waste, the value lost and the destination of unavoidable residuals. The real test is whether the material system reduces preventable loss while preserving the highest practical value in what remains.

Executive Leather Offcut Waste Benchmarks

The numbers that define material loss and recovery potential

Leather offcut performance begins with the share of incoming material that never becomes a saleable component. Historical footwear guidance places accepted cutting waste between 20% and 45%, with about 30% used as an average benchmark. Those points correspond to roughly 80%, 70% and 55% utilization. The gap between 20% and 45% waste is therefore 25 percentage points of purchased leather, a financially important difference when the material is premium full-grain leather.

Unit-level waste makes the scale tangible. A classic planning assumption uses about 2 sq ft of leather per footwear pair, 30% cutting waste, 2 mm thickness and density near 0.8 g/cm³, producing roughly 89 g of waste per pair. At industrial scale, one million pairs imply about 89 tonnes of offcuts and five million pairs about 445 tonnes. A separate finished-leather benchmark places waste at 0.1–0.2 kg per pair, so reports must define whether they measure cutting scraps alone or a wider finished-material stream.

The upstream material balance is even larger. Established tannery benchmarks report roughly 1.4 million tonnes per year of solid waste from hide processing and identify specific residual streams including 120–150 kg of raw-hide trimmings, 70–230 kg of fleshings, 115–140 kg of tanned splits, 100–120 kg of chrome-tanned shavings and trimmings, 2–5 kg of buffing dust and 30–40 kg of finished leather trimmings per tonne of processed hide. These categories are not directly interchangeable, but together they show that leather waste begins well before the cutting room.

Recovery matters as much as generation. Coarse chrome-tanned cuttings and shavings can support chromium recovery around 81–85% in selected hydrolysis systems, while fine dust performs far worse. Leather fibres can also enter polymer composites, and thermal treatment can produce char, liquid and gas. The strongest hierarchy is to prevent unnecessary offcuts, reuse large pieces, recover fibres or chemicals from smaller fractions, and reserve lower-value treatment for the remainder.

Why Leather Offcut Waste Requires a System-Based Benchmark

Weight alone does not describe offcut-management quality. A tonne of wet-blue trimmings differs fundamentally from a tonne of dry finished-leather scraps in moisture and tanning chemistry. Area is often more meaningful because leather is purchased and cut by surface area, while waste contractors report mass. Value adds another layer: 10 kg of premium calfskin can carry more embedded cost than much larger quantities of lower-grade split material. Useful benchmarking therefore needs several dimensions.

The first dimension is material utilization: how much purchased leather becomes a conforming component. The second is process intensity, or waste per pair, bag, garment or other finished unit. Third is residual quality, including fragment size, tannage, coatings and contamination. Fourth is recovery destination: a large clean offcut reused as a cardholder retains more value than material sent to grinding, hydrolysis or combustion. Fifth is disclosure, because improvement depends on consistent measurement.

This system view also prevents misleading comparisons. A plant making intricate luxury footwear may generate a higher percentage of offcuts than one making simple flat panels, even when both operate well. Conversely, a factory can report a high recycling rate while still wasting too much material during cutting. Recycling should not be used to hide poor yield. Prevention and utilization must remain visible as separate scores, with recovery evaluated only for the residual that could not reasonably be avoided.

The Mathematics of Leather Cutting Waste

How pattern yield becomes physical waste

Cutting-loss arithmetic is simple, but its industrial impact is large. Offcut area is the difference between total leather input and the area captured in conforming components. If a plant starts with 100 units and records 30% cutting waste, 70 units reach the intended product. The remaining 30 is not automatically valueless: some pieces may be reusable, some recyclable and some low-value residue. The calculation identifies material that failed to reach the primary product.

The classic footwear planning model makes the scale tangible. At about 89 g of leather waste per pair, 1,000 pairs generate approximately 89 kg, 10,000 pairs approximately 890 kg, 100,000 pairs about 8.9 tonnes and 1 million pairs about 89 tonnes. A five-million-pair program approaches 445 tonnes. These figures do not require a catastrophic waste event; they emerge from a small recurring loss multiplied by volume.

That compounding effect changes the economics of incremental improvements. Reducing offcut generation by only 5 g per pair saves 5 tonnes for every million pairs. If the saved material is high-value upper leather, the commercial benefit includes avoided purchasing as well as lower waste handling. Cutting-room improvement therefore has a double dividend: less material must be bought and less residual material must be sorted, stored, transported and treated.

Factories should calculate both absolute and normalized values. Tonnes show the total physical burden. Kilograms per thousand pairs or grams per pair reveal process intensity. Area utilization exposes nesting efficiency. Cost per finished unit translates yield into finance. When those metrics move together, management can distinguish real improvement from production-volume effects.

Figure 1. Small per-pair material losses compound rapidly as footwear production volume increases.

The 20–45% Leather Cutting-Waste Range

The most useful feature of the 20–45% cutting-waste benchmark is not the midpoint but the spread. A 20% waste rate means that 80% of purchased leather becomes intended components. At 30% waste, utilization falls to 70%. At 45% waste, only 55% reaches the primary product. Moving from the high-loss case to the reference case therefore recovers 15 percentage points of input; moving from 45% to 20% recovers 25 points. For a material that may be one of the most expensive inputs in a shoe or bag, that is a major production difference.

The range exists because leather yield is constrained by more than operator skill. Natural edge shape, holes, healed scars, insect damage, grain looseness and thickness variation all reduce the theoretical nesting area. Product requirements add more constraints. Visible panels often need cleaner zones than hidden reinforcements. Grain direction can restrict rotation. Pairs may require visual matching. A large curved shoe quarter or handbag panel is harder to nest than small rectangular tabs. This is why a single universal target is rarely appropriate across every product family.

The better approach is to establish internal yield bands for comparable work. A plant can benchmark premium shoe uppers against other premium uppers, small leather goods against small leather goods and simple straps against similar strips. The 20–45% range then becomes an external context rather than an excuse. A factory operating at 35% waste should still ask whether the specific product could be produced at 32% or 30% through better grading, digital nesting, order sequencing or cross-product use of small remnants.

Figure 2. Cutting-waste percentage directly changes the share of purchased leather that becomes saleable product.

The financial interpretation is especially important. If raw leather represents a large share of product cost, every percentage point of improved utilization has immediate purchasing value. Unlike many downstream recycling initiatives, yield improvement avoids waste before storage, handling and treatment are required. It is therefore the highest-priority intervention in a circular offcut strategy.

Where Offcuts Are Created in Footwear Manufacturing

The cutting room is the obvious source of leather scraps, but it is not the only one. Primary cutting generates edge waste, inter-pattern gaps, defect-avoidance zones and pieces that are too small for the intended product. Skiving and preparation create thin strips and irregular fragments. Stitching and assembly can reject cut components after flaws are discovered or dimensions drift outside tolerance. Finishing can add another residual stream when appearance, coating or color problems make completed leather components unusable.

Factory waste audits demonstrate how strongly the material mix can vary. In four historical footwear factories, leather represented approximately 39%, 43%, 23% and 52% of total manufacturing waste. Synthetics represented about 25%, 28%, 12% and 29% respectively. One plant showed an exceptional 54% moulding-waste share, which reduced leather's apparent proportion; after that unusual stream was removed, leather represented roughly 51% of the adjusted waste mix. The lesson is methodological: a single percentage should always be interpreted within the rest of the factory's material system.

Waste-control programs should consequently assign offcuts to their point of origin. A scrap caused by hide geometry requires a different response from a rejected component caused by cutting tolerance. A remnant left because two orders were sequenced separately may be preventable through better nesting logic. A piece rejected after stitching is a quality loss, not a pure cutting loss. Separating these causes makes the waste data operational rather than descriptive.

Leather Offcuts Versus Tannery Solid Waste

Separating manufacturing scraps from upstream processing residues

Leather offcuts are often discussed together with tannery solid waste, but the streams should not be collapsed into one category. Upstream hide processing produces raw trimmings, fleshings, splits, chrome shavings and buffing dust before a finished hide ever reaches a footwear or handbag factory. Each stream has different moisture, protein structure and chemical loading. The recovery route that works for clean finished-leather scraps may be unsuitable for fleshings or fine buffing dust.

Representative benchmarks per tonne of processed hide show the scale. Raw-hide trimmings may contribute about 120–150 kg, fleshings 70–230 kg, tanned splits 115–140 kg, chrome-tanned shavings and tanned trimmings 100–120 kg, buffing dust 2–5 kg and finished-leather trimmings around 30–40 kg. The wide ranges reflect process differences, but they also show how little meaning remains in a generic label such as “leather waste.”

The distinction also affects reporting. A footwear plant may only control finished cutting scraps, while a vertically integrated operation may influence both tannery and manufacturing residues. Circularity claims should therefore state the boundary. Reporting 90% recovery of finished offcuts does not describe what happens to chrome shavings upstream, just as a tannery's chromium-recovery performance does not reveal cutting yield in the shoe factory.

Finished Leather Offcuts Carry Embedded Value

Finished leather offcuts sit near the end of a long value chain. Before a scrap reaches the cutting floor, the hide has already carried the resource burden of livestock production, preservation, transport, tanning, washing, mechanical processing, dyeing, drying, finishing, grading and distribution. A fragment discarded after all of those stages contains far more embedded processing than an early raw trimming. This is why finished offcuts should be managed as secondary material rather than as generic refuse.

Footwear evidence placing finished leather waste around 0.1–0.2 kg per pair illustrates the point. The mass is small, but the value density can be high. If the offcut is large enough to become a wallet panel, reinforcement, pull tab or decorative component, direct reuse retains much of that embedded value. Grinding the same piece into fibre can still be useful, but it destroys shape and surface finish. Chemical recovery preserves less of the manufactured object, while thermal treatment generally sits lower in the value hierarchy.

The practical implication is to sort by reuse potential before chemistry. Large clean pieces should be segregated from small mixed scraps at the point of generation. A factory that mixes every offcut into one bin removes information that could have supported higher-value recovery. Size, leather type, color, thickness, tannage and finish are all valuable sorting fields.

Regional Leather Offcut Waste Patterns

Geographic waste volume largely follows the historical concentration of leather-footwear manufacturing. When country pairage is converted using a common per-pair waste assumption, Asia and the Middle East dominate the detailed dataset, followed by Western Europe, South America and North and Central America. Eastern Europe contributes a smaller but still material share, while Africa and Australia/Oceania appear at lower levels in the historical comparison.

These regional totals should be used as structural benchmarks rather than current production rankings. The underlying country series reflects a historic manufacturing snapshot, but its value lies in showing how offcut tonnage scales with pairage. The same logic remains valid today: a region with many factories and high pair output can carry a large absolute waste burden even if individual factories operate at respectable yields. Conversely, a low-volume region can have poor process efficiency while producing comparatively little total waste.

This distinction matters for policy and recycling infrastructure. High-volume clusters can support dedicated collection, fibre recovery or chemical-processing capacity because waste streams are concentrated. Smaller dispersed producers may need shared collection, cooperative sorting or third-party aggregation before recovery becomes economical. Regional waste strategy therefore depends on density as well as quantity.

Figure 3. Historical regional waste estimates mirror the geographic concentration of leather-footwear production.

Country-Level Leather Offcut Waste Signals

The country detail makes the scale difference more concrete. The historical dataset places China at approximately 47,499 tonnes of estimated leather waste, Italy at about 28,738 tonnes, Brazil at roughly 26,335 tonnes, India at approximately 17,675 tonnes and the United States at about 13,136 tonnes. Spain follows near 11,997 tonnes, Mexico around 10,680 tonnes, the CIS grouping close to 8,989 tonnes, South Korea about 7,031 tonnes and Pakistan around 6,702 tonnes.

These rankings should not be read as an efficiency league table. The calculation is tied primarily to production volume under a common waste-per-pair assumption. China can therefore show the largest absolute burden because it produces far more pairs, not because each factory necessarily wastes more leather. The useful interpretation is opportunity scale: every percentage point of yield improvement in a very large production base saves more material in absolute terms.

Figure 4. Large manufacturing countries create the biggest absolute opportunity for leather-waste prevention and recovery.

Country strategy should therefore pair scale with material value. Italy's opportunity may be especially attractive for direct reuse because premium leather scraps can support high-value small goods. China, India, Brazil and Mexico have scale advantages for industrial recycling and shared recovery infrastructure. Pakistan's smaller but still meaningful volume suggests potential for improved sorting and domestic secondary-use markets. In every case, the first question remains yield: recycling does not compensate for preventable material loss.

Modern Leather Waste Hotspots

More recent industry studies continue to report substantial leather-waste volumes even though their boundaries differ. One Bangladesh benchmark places leather-industry solid waste near 300 tonnes per day and identifies approximately 45% of that stream as chrome-containing hazardous material. In Poland, reported waste from leather and leather-product production reached about 49,900 tonnes in a selected year, while only a small share was neutralized directly by the producer. A China-focused study describes almost 300,000 tonnes per year of chromium-containing leather scraps, and broader global research has used an estimate near 600,000 tonnes per year for chromium-containing solid waste.

These numbers should not be summed. Some describe tannery residues, some cover leather-product manufacturing, and some isolate chromium-bearing fractions. Their value is directional: regardless of boundary, modern leather production still creates residual streams at scales large enough to justify dedicated recovery technology. The data also reveal why local waste treatment can become a competitiveness issue. Where producers are clustered, a shared recovery plant can spread capital cost across many factories; where waste is dispersed, transport and sorting may consume much of the recovered value.

The most useful modern benchmark is therefore not a single global tonnage. It is the combination of local generation rate, chemical condition, fragment form, collection density and recovery market. Those factors determine whether a residual stream is a liability or a secondary resource.

Chromium Changes the Offcut Recovery Equation

Why tanned leather requires different recovery pathways

Chrome tanning gives leather durability, hydrothermal stability and resistance to biological degradation, but it also changes the waste-management problem. Untanned trimmings are predominantly biological material. Chrome-tanned cuttings contain a stabilized collagen matrix and a mineral component that requires controlled handling. Finished scraps may add dyes, pigments, binders and surface coatings. Two pieces that look similar on the floor can therefore need very different recovery pathways.

Selected waste-characterization studies report chromium or chromium-oxide contents in the low-single-digit percentage range for many chrome-tanned wastes, including values around 2.8–4% in cuttings and shavings. Other datasets describe collagen content above 90% on a dry basis in certain chromium-containing scraps. That combination explains the technical attraction of recovery: the waste contains both a useful protein matrix and a recoverable inorganic component.

The material form is equally important. Large cuttings can be sorted, shredded or hydrolyzed with relatively controlled feed preparation. Shavings are already fragmented and may be easier to react chemically, but their handling properties differ. Buffing dust is fine, dispersible and can contain a more complicated mixture of finishing chemicals. A circular strategy should therefore begin by separating chrome-bearing waste according to physical form and finish before choosing the process.

Recovering Chromium from Leather Waste

Chromium recovery is one of the clearest examples of why offcut segregation matters. In selected thermal-pressure hydrolysis results, coarse cuttings achieved about 85% total chromium recovery and shavings about 81%, while dust returned only around 9%. The gap is large enough to change the recommended waste route. A mixed bin containing all three forms would hide the fact that two streams are technically attractive for recovery while one may require a different treatment system.

The environmental case can also be significant. One lifecycle assessment of chromium recovery from residual tanned leather reported an environmental-damage reduction approaching 95.65% compared with producing equivalent raw chromium. The same work found that chemical inputs, especially sodium hydroxide, dominated energy demand. That finding is important because it prevents a simplistic “recovery is always better” conclusion. Recovery performance should include reagent demand, energy source, water use and the fate of the protein fraction.

For manufacturers, the operational requirement is simpler: keep recoverable chrome-bearing streams clean and identifiable. Contamination with unrelated plastics, adhesives, metals or mixed finishes can reduce process efficiency and limit end uses. A well-designed segregation system creates information at the point where it is cheapest to capture.

Figure 5. Coarse cuttings and shavings can support much stronger chromium recovery than fine dust under selected hydrolysis conditions.

From Leather Offcut to Composite Material

Not every offcut needs to remain recognizably leather. When pieces are too small for direct reuse, the collagen fibre network can become a reinforcement or filler in new materials. Research has incorporated leather fibres and powders into rubber, thermoplastic polyurethane, regenerated sheet materials, boards and paper. The circular benefit is strongest when the secondary product displaces virgin material without creating unacceptable losses in strength, abrasion resistance or processability.

A nitrile-butadiene rubber system demonstrated an optimal leather-waste-fibre loading near 50 wt%, with tensile strength around 12.5 MPa and tear strength about 72.47 N/mm in the selected formulation. Thermoplastic polyurethane work has also tested finished leather waste at 10%, 15% and 20% loading while remaining within footwear abrasion limits in the reported conditions. Historical development work demonstrated ground leather at very high fractions in thermoplastics and leather-fibre additions around 10% in paper applications.

These examples show why recovered-content percentage is not a sufficient quality metric. More waste is not automatically better if the composite becomes brittle, absorbs too much moisture or fails an abrasion requirement. The benchmark should be the highest practical recovered fraction that still satisfies the mechanical and safety requirements of the intended product. For footwear, that might mean an outsole or component specification. For sheet material, it might mean flex resistance, tear strength or surface quality.

Pyrolysis and Thermal Valorization

Thermal treatment becomes relevant for leather waste that is too contaminated, too fragmented or too chemically complex for higher-value direct reuse. Pyrolysis heats material with little or no oxygen and separates it into solid char, condensable liquids and gas. Chrome-tanned leather has a high organic fraction, so the process can recover energy-bearing products while concentrating inorganic material in the solid phase.

An optimized fast-pyrolysis condition near 400°C with a residence time around 15 minutes produced approximately 65.9% char, 23.5% liquid and 10.6% gas in one study. The gas had a higher heating value near 7.2 MJ/kg and the char contained a substantial fixed-carbon fraction. Other experiments at 450°C and 600°C show that product distribution changes with temperature and waste type. Chromium concentration in the char can rise as organic matter volatilizes, meaning the destination of the solid residue is a critical part of the process design.

This makes pyrolysis a recovery technology rather than a disappearance technology. The material is transformed, not eliminated. The gas and oil fractions need suitable use, and the char must be characterized for chromium and other constituents. Thermal routes are therefore most credible when they are embedded in a complete product-management system rather than presented only as landfill diversion.

Building the Leather Offcut Waste Benchmark Index

The Leather Offcut Waste Benchmark Index converts the report into eight weighted pillars. Material utilization and cutting yield receive the largest weight at 18% because the most valuable waste is the waste that is never created. Offcut generation per production unit receives 16%, ensuring that absolute output growth does not hide worsening process intensity. Pattern nesting and process control receive 14%, reflecting the importance of design, grading, order sequencing and cutting technology in preventing avoidable loss.

Offcut segregation and traceability receive 13%. This pillar measures whether large reusable pieces, chrome-bearing scraps, finished-leather fragments and fine dust remain identifiable after generation. High-value reuse and recycling receive another 13%, rewarding systems that preserve material function before moving to lower-value treatment. Chrome-bearing waste management receives 10% because chemical condition changes both environmental risk and recovery opportunity.

Economic recovery value receives 9%. A circular program should know not only how many tonnes are diverted, but whether the recovered route retains meaningful economic value relative to disposal. Disclosure and circularity reporting receive the remaining 7%. This is the smallest weight, but poor measurement should cap the overall score because a factory cannot claim advanced performance when leather input, offcut mass, recovery route or disposal destination are unknown.

Scores from 0 to 39 indicate high-loss or poorly controlled performance. A score of 40–59 indicates basic waste management, 60–74 developing material efficiency, 75–89 advanced circular manufacturing and 90–100 exceptional material utilization. Subscores should remain visible. A factory with strong recycling but weak cutting yield should not achieve a premium overall rating solely by diverting a large waste stream from landfill.

Figure 6. Prevention, utilization and process control receive the largest combined weight because downstream recycling cannot fully offset avoidable material loss.

Leather Offcut Waste Market Challenges

The first challenge is definition. Some factories call only cutting-room remnants “offcuts,” while other studies combine finished trimmings, rejected components, shavings and buffing dust. Percentages become misleading when the denominator is not clear. A 30% cutting-waste figure based on leather area cannot be compared directly with a 30% waste share based on the total mass of every factory material.

The second challenge is measurement unit. Leather is commonly purchased by area, yet waste contractors prefer kilograms or tonnes. Thickness and moisture make conversions uncertain. Wet-blue material is heavier than dry finished leather, and heavy upholstery leather is not comparable with thin garment leather. High-quality reporting should therefore retain both area and mass where possible rather than converting everything into one unit.

Fragment size creates another challenge. A large clean offcut may be suitable for direct reuse, while a handful of similar-mass dust has little shape value. Chromium and finishing chemistry further separate the streams. Mixed tannages, coatings, adhesives and synthetic laminates can reduce recovery options. Transport can then determine whether a technically recyclable stream is commercially viable, especially for small workshops generating only a few kilograms per week.

Finally, recycling claims can distract from prevention. A factory can achieve a high diversion rate simply because it generates a large amount of recyclable waste. The benchmark must keep cutting yield visible so that downstream recovery never becomes a substitute for efficient material use.

90-Day Leather Offcut Waste Benchmark Plan

Days 1 to 30 — Establish the baseline

Record leather purchased, usable area, cut-component area, offcut area and offcut mass by product family. Capture leather type, grade, thickness, tannage, finish, color, cutting method, raw-material cost and destination. Separate large reusable pieces from medium remnants, small scraps and fine waste. Photograph representative bins and map where each stream is created. The baseline should produce utilization percentage, waste per finished unit and estimated material value lost.

Days 31 to 60 — Test process improvement

Run controlled trials on the biggest causes of cutting loss. Compare manual and digital nesting where applicable. Test pattern rotation rules, order batching, hide grading, component grouping and placement of small parts inside residual spaces. Track whether reduced waste increases cutting time or rejection risk. The objective is not only a lower scrap percentage but a better total production result with no deterioration in component quality.

Days 61 to 90 — Validate circular recovery

Classify the remaining offcuts by the highest-value realistic destination. Large pieces should be tested in small leather goods, repairs, samples or secondary components. Fibre recovery should be evaluated for clean smaller scraps. Chrome-bearing cuttings can be assessed for chemical recovery or controlled composite use. Difficult mixed streams can move toward thermal or specialist treatment. Record transport, processing cost and revenue or avoided disposal cost so that the circularity claim includes economics as well as tonnage.

Metrics Leather Manufacturers Should Track

Material metrics should begin with leather input area, usable component area, offcut area and utilization percentage. Weight should be recorded as a complementary measure rather than a replacement. Production metrics should include grams of offcut per pair, bag, garment or square meter of finished product, plus rejected components and recutting. These normalized indicators allow comparison between periods with different production volumes.

Value metrics should capture raw leather cost, estimated cost of material lost, revenue from offcut sales, recovery-processing cost, transport cost and disposal cost. A program that reduces waste by 2 tonnes but costs more than the material saved may still have environmental value, but management should understand the trade-off. Conversely, a small reduction in premium leather offcuts can deliver a large financial benefit even when the tonnage appears modest.

Circularity metrics should include direct-reuse percentage, fibre-recycling percentage, chromium recovery where relevant, composite use, thermal treatment and residual disposal. Quality metrics should track defect area, hide grade, grain-zone utilization and pattern efficiency. Consumer or business metrics can add claims around recycled content and traceability, but those claims should sit on top of measured factory performance rather than replace it.

How Leather Offcut Performance Changes by Business Model

Tanneries influence offcut performance through trimming, splitting, shaving, chrome chemistry and segregation. Their priority is to keep chemically different streams separate and preserve recoverable collagen and chromium. Footwear factories influence yield through pattern geometry, nesting, component quality requirements, pair matching and production volume. For them, prevention at the cutting table usually has the largest immediate economic value.

Handbag manufacturers operate under a different geometry. Large visible panels can make nesting difficult, but the offcuts themselves may be valuable enough for cardholders, tabs, straps and trim. Small leather-goods makers can therefore function as secondary users of remnants from larger products. This creates a natural cascade in which a large handbag panel is cut first, a wallet piece is nested in the remaining area and smaller components use the final clean spaces.

Recyclers become important when shape value is exhausted. They convert small fragments into fibres, regenerated sheets, polymer fillers, chemical feedstocks or thermal products. Brands sit across the system because they influence design complexity, leather specification, supplier requirements, disclosure and recovery partnerships. A brand that wants lower offcut waste can therefore act before the factory receives the hide by simplifying component architecture and planning cross-product use of remnant areas.

Design-for-Low-Waste Leather Products

Some of the most effective waste reductions occur during product design rather than factory optimization. Highly curved components can leave narrow unusable gaps. Large uninterrupted panels demand cleaner hide zones and may force cutters to reject otherwise acceptable areas. Standardized widths, modular paneling, smaller interchangeable components and coordinated product families can increase the number of ways patterns fit around defects and hide edges.

Cross-product nesting is especially powerful. A premium handbag panel can be cut first from the clean central zone. Medium remnants can supply footwear facings or wallet sections. Narrow strips can become handles, loops or tabs. Smaller clean pieces can become labels, patches or sample swatches. Only after those shape-preserving options are exhausted should the remaining material be shredded or chemically processed.

This approach reframes offcuts as an inventory problem. The design team needs to know what secondary component sizes are useful, and the cutting room needs a simple way to classify pieces large enough for those uses. Digital pattern libraries can make the connection more systematic by matching remnant geometry with future small-part demand.

The Leather Offcut Waste Report FAQ

What percentage of leather becomes cutting waste?

A widely used manufacturing benchmark places leather cutting waste between 20% and 45%, with about 30% often used as an average planning figure. The correct target depends on hide quality, product geometry, component size and cutting rules. The range is most useful as external context; factories should maintain tighter internal benchmarks for comparable product families.

How much leather waste does one pair of shoes generate?

A classic footwear assumption produces about 89 g of leather waste per pair. Separate finished-leather studies report a broader 0.1–0.2 kg per pair. The difference reflects boundary and method. A factory should therefore state whether its figure covers primary cutting scraps only or includes other rejected finished-leather material.

Why is leather cutting waste so high?

Leather is irregular in shape and quality. Natural contours, scars, holes, thickness variation and grain quality reduce the area available for critical components. Product patterns also create interlocking constraints. Curved or large panels generally leave more residual space than small simple shapes, especially when grain direction and pair matching restrict rotation.

Are all leather offcuts hazardous?

No. The appropriate classification depends on tannage, finishes and contamination. Untanned trimming is primarily biological material. Chrome-tanned offcuts contain stabilized collagen and chromium, while finished scraps can add pigments, binders and coatings. Waste streams should be identified by chemical condition rather than treated as one generic material.

Can chrome-tanned offcuts be recycled?

Yes. Potential routes include direct reuse, fibre recovery, polymer composites, hydrolysis, chromium recovery and controlled thermal processing. Selected hydrolysis results show chromium recovery around 81–85% for cuttings and shavings, although performance varies strongly with waste form and process design.

What is the best use for large leather offcuts?

Direct reuse normally retains the most embedded value because the offcut keeps its shape, surface finish and mechanical properties. Large clean remnants can become cardholders, tabs, straps, repair patches, samples or smaller product panels. Grinding should usually follow only when useful geometry can no longer be preserved.

Can leather scraps be used in composites?

Yes. Leather fibres and particles have been tested in rubber, thermoplastic polyurethane, sheet materials and paper. One nitrile-butadiene rubber formulation used about 50 wt% leather waste fibre with useful mechanical performance. The correct loading depends on the intended product and required abrasion, tear, strength and flexibility properties.

Does landfill diversion automatically mean good waste performance?

No. A plant can divert most waste from landfill while still generating too much offcut material. Prevention should receive the highest priority, followed by direct reuse and high-value material recovery. Diversion is important, but it should not hide weak cutting yield.

Which metric best compares factories?

No single metric is sufficient. A strong comparison uses utilization rate, waste per finished unit, offcut area and mass, material value lost, direct-reuse share, recycling share and residual disposal. Product families should also be comparable because pattern complexity can materially change achievable yield.

What should a leather brand disclose?

Useful disclosure includes leather input, utilization or cutting yield, tannage, offcut mass, recovery route, direct-reuse share, recycling share and final disposal. Where claims rely on supplier data, the boundary should be explicit so consumers and business customers can distinguish factory cutting performance from downstream waste diversion.

Final Takeaway

Leather offcut waste is a material-utilization problem before it is a disposal problem. Cutting loss can sit within a broad 20–45% range, with roughly 30% used as a practical average benchmark. At about 89 g of leather waste per footwear pair, modest unit losses rapidly become industrial tonnage: around 89 tonnes per million pairs. The gap between 20% and 45% cutting waste represents 25 percentage points of purchased leather input, giving prevention direct financial as well as environmental value.

The wider leather-waste system includes raw trimmings, fleshings, tanned splits, chrome shavings, buffing dust and finished trimmings. Chrome-tanned cuttings can contain chromium in the low-single-digit percentage range and a high collagen fraction. Selected hydrolysis systems recover around 81–85% of chromium from cuttings and shavings, while fine dust can perform much worse.

Circular pathways should follow material value: direct reuse for large clean offcuts, fibre and composite routes for smaller pieces, chemical recovery for suitable chrome-bearing streams, and controlled thermal treatment for difficult residuals. The strongest manufacturer improves nesting, measures yield, separates scraps by chemistry and size, and keeps unavoidable leather at its highest practical value for as long as possible.
